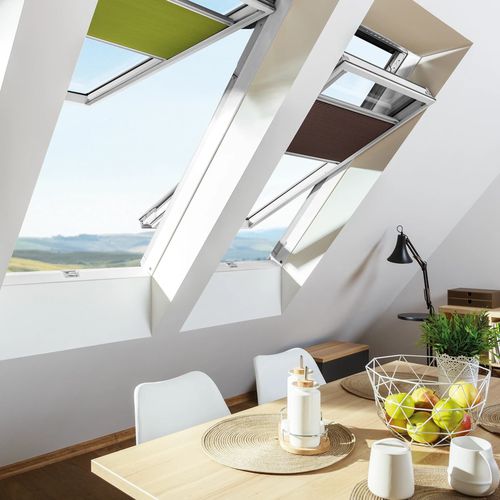

Aluminum roof window FPU-X MAX P50 AUMX

pinewood-aluminumtop-hung

Product overview
GREENVIEW FPU-X MAX P50 AUMX is a roof window engineered for year-round comfort, combining versatile ventilation with high thermal and acoustic performance. It offers two independent opening systems (top-hung and pivot) to enable controlled airflow, safe cleaning of the outer pane and convenient daily use.

Key functions

• Two independent opening modes: top-hung (sash raises up to 45° for ventilation and view) and pivot (180° rotation for safe external pane cleaning).
• preSelect® switch on the frame to change sash mode between top-hung and pivot without opening the window.
• Bottom sash handle with two micro-ventilation positions for controlled air exchange.
• Special locking bolt secures sash in the fully rotated 180° position for safe maintenance.

Glazing and acoustic performance

• Glazing unit: P50 triple-glazed unit, 44 mm thickness.
• Glazing composition: toughened outer pane, laminated inner pane (P2A), argon fill and additional acoustic interlayer for improved sound insulation.
• Thermal transmittance (Uw): 1.0 W/m²K in standard installation; Uw = 0.9 W/m²K when installed with EHV-AT Thermo flashing (thermoPro technology).
• Sound insulation: very good sound reduction index Rw = 40 dB (reported Ra1 = 39 dB; Ra2 = 35 dB for specific configurations).
• Outer pane: toughened glass with lifetime hail warranty (subject to warranty terms).
• Easy-to-clean coating on outer glass to reduce soiling and simplify maintenance.

Materials, finish and aesthetics

• Main material: vacuum-impregnated pinewood sash/frame for moisture resistance and dimensional stability.
• Internal finish: white polyurethane varnish (close to RAL 9003) — smooth, waterproof surface suitable for humid rooms.
• External cladding: aluminium in anthracite (RAL 7016) developed with an industrial design institute; other colour options referenced (black RAL 9005, grey-brown RAL 7022).
• Lacquer: three coats of polyurethane lacquer applied to interior surfaces.

Security, durability and additional systems

• topSafe reinforced construction to increase resistance to forced entry and accidental opening.
• Durable design and glazing choices to support long service life; internal laminated glass reduces injury risk on breakage.
• Environmentally conscious: manufactured from FSC-certified wood and finished with water-based coatings where specified.

Operation, control and compatibility

• Control: manual operation via bottom handle; micro-ventilation positions available.
• Solar power supply: not applicable for the standard manual version.
• Recommended accessories and installation products: original GREENVIEW/FAKRO flashings are required for correct installation; compatibility with EHV-AT Thermo flashing for best thermal performance.

Installation guidance

• Installation location: rafters or battens.
• Supported installation depths: J, N, V (use original installation accessories as required).
• Roof pitch range: 15°–55°.
• Proper flashing selection is mandatory for correct installation and to achieve the declared Uw.

Maintenance and cleaning

• Pivot 180° position with locking bolt enables safe, independent cleaning of the outer pane without roof access.
• Easy-to-clean coating reduces dirt build-up; natural rain and sunlight assist cleaning.

Specifications / technical data

• Model name: FPU-X MAX P50 AUMX
• Commercial size (W × H): 55 × 98 cm
• Window frame clear opening width: 458 mm
• Window frame clear opening height: 886 mm
• Window sash clear opening width: 369 mm
• Window sash clear opening height: 791 mm
• Window reveal clear opening width: 495 mm
• Window reveal clear opening height: 919 mm
• Opening angle for cleaning: 180°
• Glazing unit: P50, 44 mm triple-glazed unit (toughened outer pane, laminated inner pane P2A, argon, acoustic film)
• Thermal transmittance Uw: 1.0 W/m²K (standard); 0.9 W/m²K with EHV-AT Thermo flashing (thermoPro)
• Number of seals: 4
• Airtightness (air permeability): Class 3
• Sound reduction index Rw: 40 dB (Ra1 = 39 dB; Ra2 = 35 dB)
• Safety level: topSafe
• Wind load resistance: Class C4/B4
• Impact resistance: Class 3 – 450 mm
• Watertightness: 9A
• Construction / Opening method: top-hung and pivot (two independent opening modes)
• Control system: Manual (bottom handle; micro-ventilation positions)
• Handle: GREENVIEW silver (standard); number of handles: 1 (larger widths may use two)
• Materials: vacuum-impregnated pinewood (frame/sash); aluminium external cladding
• Internal lacquer colour: white (RAL 9003); lacquer type: polyurethane; number of coats: 3
• Cladding colour (standard example): Anthracite RAL 7016 (other options referenced)
• Weight (product): 36 kg
• Package dimensions (W × L × H): 0.57 m × 1.05 m × 0.165 m
• Packaging method: tied with transportation belts
• Installation location: rafters or battens; roof pitch: 15°–55°
• Recommended mandatory accessory: appropriate flashing for roof window installation (use original installation accessories to obtain declared Uw)
