Aluminum roof window FDP-X P50 APMX

pinewood-aluminumpivoting

Overview

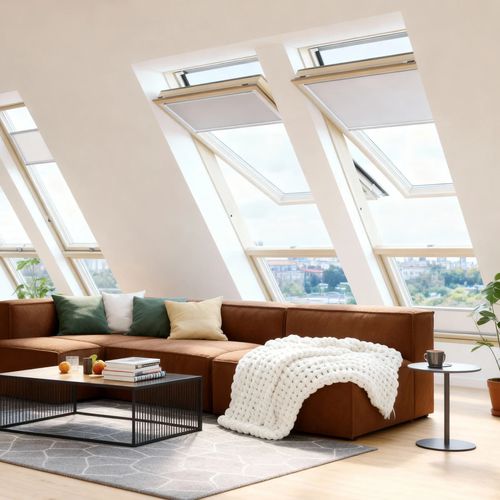

The FDP‑X P50 APMX is a pivot roof window with a lower transom that increases daylight while preserving a single integrated frame. Its raised pivot axis and guided sash ensure smooth manual operation and safe external cleaning up to 180°. The unit combines high acoustic and thermal performance with minimalist exterior aluminium cladding.

Key functional benefits

• Raised pivot axis with guided sash for stable movement and ergonomic use; 160° locking position for safe cleaning.
• Lower transom with additional glazed pane to boost interior illumination without merging two separate windows.
• Lower-handle position for natural operation and micro-ventilation; wider units use two handles for easier handling.
• Locking bolt secures the sash at rotated positions (up to 180°) enabling safe external cleaning without roof access.

Energy and acoustic efficiency
Equipped with the P50 glazing unit and thermoPro frame technology, the window delivers year-round thermal performance and improved acoustic comfort. Installation options and sealing reduce thermal bridging and air leakage.

Glazing and insulation highlights

• P50 triple-glazed unit, 44 mm total thickness, with easy-to-clean coating and acoustic film.
• Uw: 1.1 W/m²K (standard installation); 1.0 W/m²K with EHV‑AT Thermo flashing (thermoPro).
• Sound reduction Rw = 37 dB; additional acoustic film and laminated P2A inner pane further improve noise attenuation.
• Toughened outer pane for impact resistance and laminated inner pane (P2A) for enhanced safety.

Aesthetics and durability

• Interior finish: vacuum‑impregnated pine with clear acrylic varnish that enhances natural grain and durability.
• Exterior cladding: aluminium in anthracite (RAL 7016) for a minimalist look; alternative colours available.
• Water‑based coatings and two lacquer coats on the interior provide long‑lasting finish.
• No air inlet in the cladding improves airtightness and acoustic performance.

Materials

• Frame & sash: vacuum‑impregnated pinewood.
• Cladding: aluminium (standard anthracite RAL 7016; options: RAL 9005, RAL 7022).
• Lacquer: acrylic; interior colour: natural pine.

Operation & control

• Opening: pivot, manual operation.
• Control: manual; solar power not applicable for this model.
• Cleaning angle: sash rotates up to 180°; locking bolt secures rotated sash for safe external cleaning.

Additional product features

• topSafe security system for improved resistance to forced entry and accidental opening.
• thermoPro multi‑chamber frame and specialized seals reduce thermal bridging and increase airtightness.
• Easy‑to‑clean coating breaks down dirt and facilitates rain‑assisted cleaning; may slightly alter pane appearance versus untreated glass.
• Environmentally conscious production: FSC‑certified wood and water‑based coatings.

Technical specifications

• Model name: FDP‑X P50 APMX
• Brand: FAKRO
• Commercial size (W × H): 78 × 186 cm
• Selected size shown: 78 × 186 cm
• Frame clear opening width: 688 mm
• Frame clear opening height: 1766 mm
• Sash clear opening width: 599 mm
• Sash clear opening height: 1211 mm
• Reveal clear opening width: 725 mm
• Reveal clear opening height: 1799 mm
• Sash cleaning position: rotates to 180°
• Glass unit thickness: 44 mm (P50 triple‑glazed)
• Uw: 1.1 W/m²K (standard); 1.0 W/m²K with EHV‑AT Thermo flashing
• Number of seals: 4
• Thermo technology: thermoPRO
• Airtightness class: Class 4
• Sound reduction Rw: 37 dB
• Sound reduction Ra1: 36 dB
• Sound reduction Ra2: 34 dB
• Safety level: topSafe
• Wind load resistance: Class C4 / B4
• Impact resistance: Class 3 (450 mm)
• Watertightness: 9A
• Handle model: Klamka GREENVIEW SREBRNA
• Number of handles: 1 (two handles for widths >≈98 cm)
• Air inlet: Not applicable
• Opening method: pivot (manual)
• Control system: manual
• Solar power supply: No
• Construction type: Pivot window with lower transom
• Interior colour: Natural pine
• Exterior cladding colour: Anthracite RAL 7016 (standard)
• Window material: Vacuum‑impregnated pinewood
• Cladding material: Aluminium
• Lacquer type: Acrylic; coats: 2
• Product weight (selected size 78×186): 58.55 kg
• Package dimensions (W×L×H): 0.8 m × 1.48 m × 0.165 m
• Packaging: Tied with transportation belts
• Installation depth options: J, N, V
• Installation location: rafters or battens
• Roof pitch (min.–max.): 25°–65°
