Aluminum balcony window FOP P50 APMX

pinecasementtriple-glazed

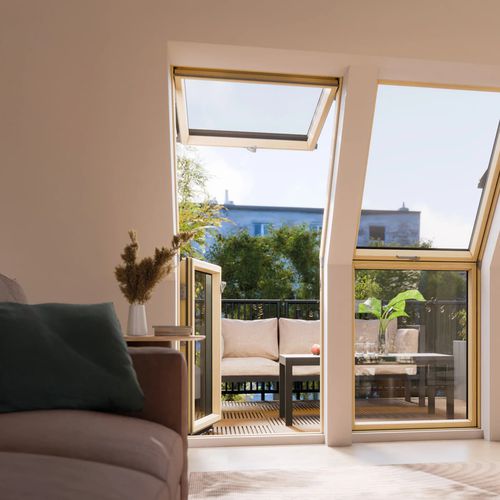

Overview The lower element of the FOP P50 APMX terrace window set is designed for installation in a knee wall and to integrate with FOP‑V or FOP‑X roof windows to form a continuous glazed terrace access. It maximises daylight, provides ventilation and allows access to a terrace or balcony via a right‑hand opening.

Key features

• Lower element for terrace window — right‑hand opening
• P50 glazing unit: 44 mm triple glazing with argon filling and laminated inner pane
• Uw = 1.1 W/m²K with EHV‑AT Thermo flashing (selected commercial size)
• thermoPRO thermal insulation system
• Easy‑to‑clean coating on outer glass
• Acoustic performance enhanced by argon and acoustic film
• Interior: vacuum‑impregnated pinewood with clear acrylic varnish
• External aluminium cladding in anthracite RAL 7016
• topSafe safety system and reinforced construction

Technical & thermal performance The P50 glazing is a 44 mm triple‑glazed unit with a toughened outer pane, argon gas filling, a laminated P2A inner pane and an acoustic film. With the EHV‑AT Thermo flashing installed the complete unit achieves Uw = 1.1 W/m²K for the specified commercial size. Flexible seals improve airtightness and reduce thermal bridges.

Materials and finish

• Frame: vacuum‑impregnated pinewood
• Interior finish: clear acrylic varnish (natural wood appearance), two lacquer coats
• External cladding: aluminium (standard Anthracite RAL 7016; options RAL 9005 and RAL 7022)

Glass & safety

• Outer pane: toughened safety glass (lifetime hail‑resistance warranty subject to terms)
• Inner pane: laminated glass P2A for safety
• Acoustic film included
• Easy‑to‑clean hydrophilic/photocatalytic coating reduces dirt adhesion

Operation and control Manual control system. The lower element opens to provide safe access to a terrace or balcony while maintaining declared thermal and acoustic characteristics.

Compatibility and installation Designed to combine with FOP‑V and FOP‑X roof windows as part of a terrace window system. For declared Uw performance use EHV‑AT Thermo flashing and original installation accessories; correct installation is required for performance and warranty.

Additional notes Specified for improved daylighting, ventilation and acoustic comfort when integrated into terrace window systems; shows natural wood interior and durable aluminium exterior cladding.

Technical specifications

• Commercial size (W × H): 78×118 cm
• Model: FOP P50 APMX (lower element of terrace window)
• Glazing: P50 triple glazing, 44 mm
• Thermal transmittance (Uw): 1.1 W/m²K (with EHV‑AT Thermo flashing)
• Seals: 4
• Thermo system: thermoPRO
• Airtightness (air permeability): Class 3
• Safety system: topSafe
• Wind load resistance: Class C3
• Watertightness: 9A
• Window material: vacuum‑impregnated pinewood
• Interior finish: clear acrylic varnish
• External cladding colour: Anthracite RAL 7016 (options: RAL 9005, RAL 7022)
• Cladding material: aluminium
• Number of lacquer coats: 2
• Control system: Manual
• Solar power supply: No
• Air inlet: Not applicable
• Product weight: 55 kg
• Package dimensions (W × L × H): 0.8 m × 1.25 m × 0.165 m
• Packaging method: tied with transportation belts
• Number of products per pallet: 7
• Included glass features: toughened outer pane, P2A laminated inner pane, argon filling, acoustic film, easy‑to‑clean coating
