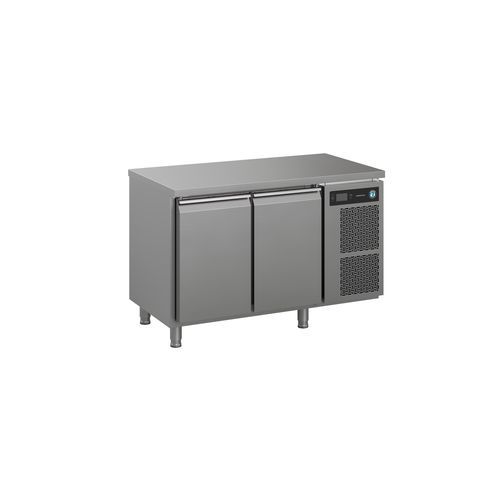

Commercial kitchen refrigerated counter PREMIER F 2 A DL DR L E CO2

2 doorswithout drawerfor frozen food

Product overview
The Premier F 2 A DL DR L E CO2 is a 2-section freezer counter designed for connection to a remote cooling system (supplied without controller). It features a stainless steel AISI 304 worktop, two door sections each fitted with two grey shelves, and accepts 1/1 GN containers. External dimensions (W x D x H): 1314 x 700 x 754.2 mm (height including legs: 884.2 - 934.2 mm). Note: unit is available on special order for remote systems — allow extended lead times.

Key features

• TEMPERATURE STABILITY: rapid recovery of internal temperature after door openings and defrost cycles.
• SEAMLESS KITCHEN DESIGN: front venting allows integration into continuous kitchen lines without requiring airflow under, at the sides or behind the unit.
• EASY MAINTENANCE: extractable, compartmentalized cooling unit for straightforward service access.
• HYGIENE & COOLING EFFICIENCY: removable magnetic gaskets and triple-insulation zones reduce cold-air loss.
• ERGONOMIC DESIGN: anti-tilt shelves, drawers with pull-out stops, extended telescopic rails and full‑length handles.
• VAST VARIETY: multiple combinations of worktops, doors, drawers, legs/castors/electric elevation, temperature ranges and accessories.
• MORE FEATURES: optional Soft Closing Drawer; choice of worktop and insulation boards; increased body height of 750 mm; optional castor extension kit (+50 mm).

Specifications
Item number - 213000012102
Model name - Premier F 2 A DL DR L E CO2
Brand - Hoshizaki
Warranty period - 1 Year on Parts
Country of origin - Turkey
Accessories included - 2 grey shelves per door section
Title - 2-Section Freezer Counter without controller for remote cooling system
Equipped with - Stainless steel worktop, 2 door sections each with 2 grey shelves
Please observe - This counter for connection to remote cooling system is on special order only. Please take longer lead times into consideration
Width - 1314 mm
Width (packed) - 1400 mm
Depth - 700 mm
Depth (packed) - 820 mm
Height - 754.2 mm
Height including legs (minimum) - 884.2 mm
Height including legs (maximum) - 934.2 mm
Height (packed) - 986 mm
Volume (packed) - 1.13 m³
Number of shelves - 4
Number of shelves per door section - 2
Shelf size - 1/1 GN
Min. cooling capacity F cabinets at -30°C - 376 W
Temperature Range Span - -25/+12°C
Climate class - 5 (max. ambient 40°C w/ 40% RH)
Connection load - 600 W
Exterior - Stainless steel AISI 304
Interior - Stainless steel AISI 304
Gross weight - 86 kg
Net weight - 78 kg
Insulation thickness - 60 mm
Insulation type - Polyurethane
Legs / Castors - H = 130-180 mm (L)
Number of sections - 2 sections
Power supply - 230V, 50Hz
Maximum current amperage - 2.6 Ah
Maximum system pressure - 90 Bar
Volume, gross - 301 l
Worktop options - Flat worktop A
Cooling system - For remote cooling system
Configuration of sections - Models with door section
Refrigerant compatibility - R744
SKU - 213000012102

Technical specifications

• Item number: 213000012102
• Model name: Premier F 2 A DL DR L E CO2
• Brand: Hoshizaki
• Warranty: 1 Year on Parts
• Country of origin: Turkey
• Accessories included: 2 grey shelves per door section
• Dimensions (W x D x H): 1314 x 700 x 754.2 mm (height incl. legs 884.2 - 934.2 mm)
• Packed dimensions (W x D x H): 1400 x 820 x 986 mm
• Volume gross: 301 l
• Volume packed: 1.13 m³
• Number of sections: 2
• Number of shelves: 4 (2 per door section)
• Shelf size: 1/1 GN
• Temperature range: -25 to +12°C
• Min. cooling capacity (-30°C): 376 W
• Connection load: 600 W
• Power supply: 230V, 50Hz; Max current: 2.6 Ah
• Refrigerant compatibility: R744 (CO2)
• Insulation: Polyurethane, 60 mm
• Exterior / Interior: Stainless steel AISI 304
• Gross weight / Net weight: 86 kg / 78 kg
• Legs / Castors height: H = 130-180 mm (L); Castor extension option available
• Cooling system: For remote cooling system (special order)
