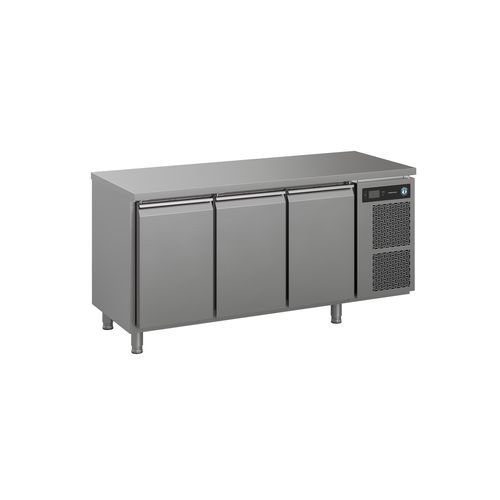

Catering refrigerated counter PREMIER F 3 A DL DL DR L E CO2

for restaurantfor commercial kitchen3 doors

Product overview
The Premier F 3 A DL DL DR L E CO2 is a 3-Section Freezer Counter without controller for remote cooling system. It includes a stainless steel worktop, three door sections each supplied with two grey 1/1 GN shelves, and a gross volume of 463 l. Outside dimensions (W x D x H): 1755 x 700 x 884 - 934 mm (height including legs variable).

Main equipment and features

• Stainless steel worktop (Flat worktop A option)
• 3 door sections, 2 grey shelves per section (6 shelves total)
• Shelf size: 1/1 GN
• Configured for connection to a remote cooling system (no internal controller)
• Refrigerant compatibility: R744 (CO2)

Key features

• Temperature stability: rapid recovery after door openings and defrost cycles
• Seamless kitchen integration: front venting allows flush installation with no airflow required underneath, sides, or back
• Serviceable design: extractable, compartmentalized cooling unit for maintenance
• Hygiene & efficiency: removable wide magnetic gaskets and triple insulation area for effective sealing
• Ergonomics: anti-tilt shelves, drawers with pull-out stops, extended drawer rails, full-length handles
• Flexible configurations: multiple worktops, doors, drawers, legs/castors/electric elevation, temperature ranges and accessories

Additional features

• Soft Closing Drawer (optional)
• Various worktop and insulation board options
• Increased body height option (750 mm)
• Castor Extension Kit to increase castor height by 50 mm (optional)

Please observe
This counter configured for connection to a remote cooling system is made to special order; allow for longer lead times.

Accessories (examples available)

• Shelf stainless, 325 x 530 mm (item no. 760660010)
• Set of castors 150 mm (item no. 760660011)
• Set of castors 200 mm (item no. 760660012)
• Set of castors 125 mm (item no. 760660022)
• Set of legs 130-180 mm (item no. 760660118)
• Castor Extension Kit (extends castor height by 50 mm) (item no. 760660453)
• Door section (item no. 760660482)
• Drawer section with 2 x 1/2 drawers (item no. 760660483)
• Shelf grey 325 x 530 mm (item no. 760660546)
• Flat worktop with splashback options (multiple item numbers)

Technical characteristics / specifications

• Item number: 313000112102
• Model name: Premier F 3 A DL DL DR L E CO2
• Brand: Hoshizaki
• Title: 3-Section Freezer Counter without controller for remote cooling system
• Equipped with: Stainless steel worktop; 3 door sections each with 2 grey shelves
• Width: 1755 mm (packed: 1835 mm)
• Depth: 700 mm (packed: 820 mm)
• Height: 754.2 mm (including legs min: 884.2 mm; max: 934.2 mm; packed: 986 mm)
• Volume (packed): 1.48 m3
• Number of shelves: 6 (2 per door section)
• Shelf size: 1/1 GN
• Min. cooling capacity F cabinets at -30°C: 376 W
• Temperature range span: -25/+12°C
• Climate class: 5 (max. ambient 40°C, 40% RH)
• Connection load: 620 W
• Exterior / Interior: Stainless steel AISI 304
• Gross weight: 118 kg / Net weight: 108 kg
• Insulation: Polyurethane, thickness 60 mm
• Legs / Castors: H = 130-180 mm (L)
• Number of sections: 3
• Power supply: 230V, 50Hz
• Maximum current: 2.6 A
• Maximum system pressure: 90 Bar
• Gross volume: 463 l
• Worktop options: Flat worktop A (others available)
• Cooling system: For remote cooling system
• Configuration: Models with door sections
• Refrigerant compatibility: R744 (CO2)
• SKU: 313000112102
• Warranty period: 1 Year on Parts
• Country of origin: Turkey
