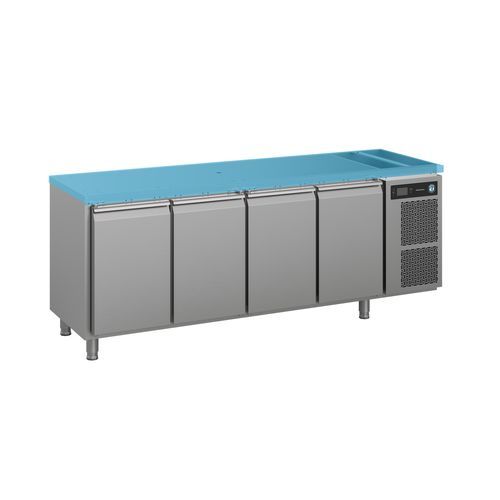

Commercial kitchen refrigerated counter PREMIER M 4 B DL DL DL DR L E CO2

4 doorswithout drawerstainless steel

Product summary
The Hoshizaki Premier M 4 B DL DL DL DR L E CO2 is a 4-section refrigerated counter with extended refrigeration designed for connection to a remote cooling system. Supplied without worktop (includes insulated board) for installation under an existing tabletop. Each of the four door sections includes two grey shelves; shelf format 1/1 GN. External cabinet dimensions: W 2192 x D 680 x H 750 mm (height with legs 880–930 mm).

Series description
Hoshizaki PREMIER counters are engineered for professional kitchen environments (Climate Class 4/5). Construction uses AISI 304 stainless steel for exterior and interior, solid door hinges and triple-insulation areas to minimise thermal losses and enable reliable operation in demanding conditions.

Key features

• DESIGNED FOR REMOTE COOLING: Configured for connection to a remote cooling system; unit supplied without controller.
• MODULAR 4-SECTION LAYOUT: Four door sections with 2 shelves each (8 shelves total), suitable for 1/1 GN containers.
• INTEGRATED INSTALLATION: Supplied without worktop and with insulated board for built-in installation under existing countertops.
• MAINTENANCE-FRIENDLY: Extractable, compartmentalised cooling unit for straightforward access and servicing.
• HYGIENE & SEALING: Wide removable magnetic gaskets and polyurethane insulation (60 mm) to facilitate cleaning and limit cold air escape.
• ADJUSTABLE HEIGHT: Legs/castors height range H = 130–180 mm; overall cabinet height options 880–930 mm.

More features

• Optional soft-closing drawer
• Different worktop options and insulation board available
• Increased body height variant (750 mm)
• Optional castor extension kit to raise castors by 50 mm

Documentation available
Declaration of conformity (PDF) and Instruction manual (PDF) available on request.

Technical specifications

• Item number / SKU: 412031112102
• Model name: Premier M 4 B DL DL DL DR L E CO2
• Brand: Hoshizaki
• Title: 4-Section Refrigerated Counter with extended refrigeration, without controller for remote cooling system
• Configuration: Without worktop (with insulated board) for built-in under existing tabletop; 4 door sections each with 2 grey shelves
• Dimensions (W x D x H cabinet): 2192 x 680 x 750 mm
• Height incl. legs (min–max): 880–930 mm
• Packed dimensions (W x D x H): 2280 x 820 x 985 mm
• Gross / Net weight: 119 kg / 107 kg
• Volume, gross: 625 l; Packed volume: 1.84 m³
• Number of shelves: 8 (2 per door section), shelf size 1/1 GN
• Insulation: Polyurethane, thickness 60 mm
• Temperature range: -5 / +12 °C
• Min cooling capacity (K and M cabinets at -10°C): 350 W
• Climate class: 5 (max ambient 40°C, 40% RH)
• Connection load: 650 W; Power supply: 230 V, 50 Hz; Max current: 2.7 A
• Maximum system pressure: 90 bar; Refrigerant compatibility: R744 (CO2)
• Exterior / Interior material: Stainless steel AISI 304
