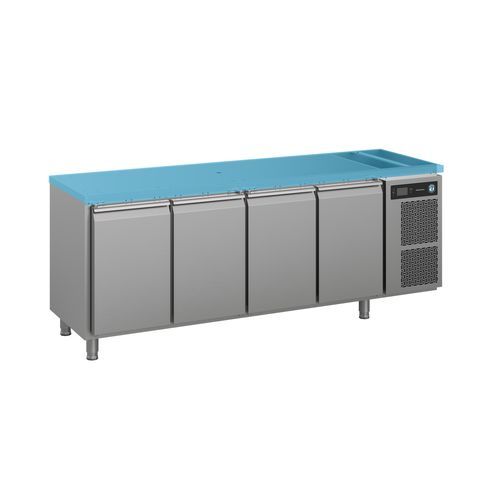

Commercial kitchen refrigerated counter PREMIER K 4 B DL DL DL DR L E CO2

4 doorswithout drawerstainless steel

Product overview
The Premier K 4 B DL DL DL DR L E CO2 is a 4-Section refrigerated counter designed for connection to a remote cooling system. Supplied without controller and without worktop (with insulated board) for installation under an existing tabletop. The unit comprises 4 door sections, each fitted with two grey shelves. External dimensions (W × D × H): 2192 × 680 × 750 mm; height including legs: 880–930 mm.

Key features

• TEMPERATURE STABILITY: Counter design ensures rapid recovery of internal temperature after door openings and defrost cycles.
• SEAMLESS KITCHEN INTEGRATION: Front venting allows installation without airflow requirement at the underside, sides or rear of the unit.
• EASY MAINTENANCE: Extractable, compartmentalized cooling unit for straightforward service access.
• HYGIENE & COOLING EFFICIENCY: Wide removable magnetic gaskets and triple-insulation zones to minimize cold-air loss.
• ERGONOMIC DESIGN: Anti-tilt shelves, drawers with pull-out stops, extended drawer telescopic rails and full-length handles.
• VARIANTS & ACCESSORIES: Multiple combinations of worktops, doors, drawers, legs/castors/electric elevation and accessory options.

More features

• Soft closing drawer (optional)
• Different worktop options & insulated board
• Increased body height of 750 mm
• Castor Extension Kit to raise castor height by 50 mm (optional)

Documentation (available)
Declaration of conformity (product specific) and instruction manual (all languages) are available for this remote counter model.

Technical specifications

• Item number: 411031112102
• Model name: Premier K 4 B DL DL DL DR L E CO2
• Brand: Hoshizaki
• Product type: 4-Section Refrigerated Counter without controller for remote cooling system
• Configuration: Without worktop (with insulated board) for built-in under existing tabletop, 4 door sections each with 2 grey shelves
• Accessories included: 2 grey shelves per door section
• Warranty period: 1 Year on Parts
• Country of origin: Turkey
• Width: 2192 mm
• Width (packed): 2226 mm
• Depth: 680 mm
• Depth (packed): 820 mm
• Height (body): 750 mm
• Height including legs (min): 880 mm
• Height including legs (max): 930 mm
• Height (packed): 985 mm
• Packed volume: 1.84 m³
• Number of shelves: 8 (2 per door section)
• Shelf size: 1/1 GN
• Min. cooling capacity K and M cabinets at -10°C: 350 W
• Temperature range: +2 / +12 °C
• Climate class: 5 (max ambient 40°C, 40% RH)
• Connection load: 650 W
• Exterior: Stainless steel AISI 304
• Interior: Stainless steel AISI 304
• Gross weight: 119 kg
• Net weight: 107 kg
• Insulation thickness: 60 mm
• Insulation type: Polyurethane
• Legs / Castors: H = 130–180 mm (L)
• Number of sections: 4
• Power supply: 230 V, 50 Hz
• Maximum current: 2.7 A
• Maximum system pressure: 90 Bar
• Gross volume: 625 l
• Worktop options: Without worktop B
• Cooling system: For remote cooling system
• Section configuration: Models with door section
• Refrigerant compatibility: R744
• SKU: 411031112102
