Catering refrigerated counter PREMIER M 4 A DL DL DL DR L E CO2

for restaurantfor commercial kitchen4 doors

Product overview

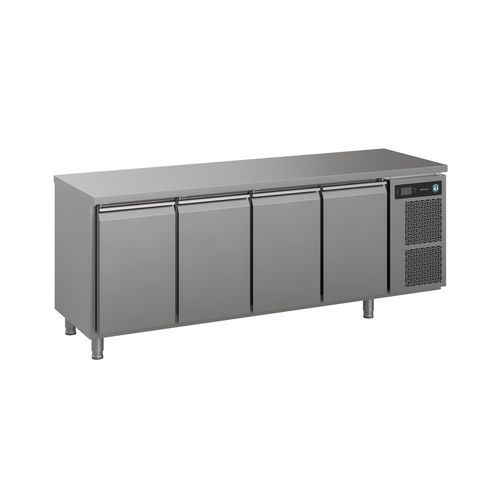

The Premier M 4 A DL DL DL DR L E CO2 by Hoshizaki is a 4‑section refrigerated counter with extended refrigeration, designed for connection to a remote cooling system (supplied without controller). It features a stainless steel worktop and four door sections, each fitted with two grey 1/1 GN shelves. Overall external dimensions: 2196 x 700 x 754.2 mm; height including legs: 884.2–934.2 mm. Climate class 5; refrigerant compatibility R744 (CO2). This model is available on special order for remote systems—allow extended lead times.

Key features

• Temperature stability: rapid temperature recovery after door openings and defrost cycles.
• Seamless kitchen integration: front venting design removes the need for airflow under, at the sides or behind the unit.
• Maintenance‑friendly: extractable, compartmentalised cooling unit for easy service access.
• Hygiene and efficiency: wide removable magnetic gaskets and triple insulation zones to minimise cold air loss.
• Ergonomics: anti‑tilt shelves, drawers with pull‑out stops and full‑length handles for professional use.
• Flexible configuration: multiple worktop, door and drawer options, legs/castors/electric elevation and accessory choices to match kitchen workflows.

More features

• Optional soft‑closing drawer.
• Different worktop options and insulation boards.
• Increased body height variant (750 mm).
• Optional Castor Extension Kit to raise castor height by 50 mm.

Specifications

• Item number: 412001112102
• Model name: Premier M 4 A DL DL DL DR L E CO2
• Brand: Hoshizaki
• Title: 4-Section Refrigerated Counter with extended refrigeration, without controller for remote cooling system
• Equipped with: stainless steel worktop; 4 door sections each with 2 grey shelves
• Dimensions (W x D x H): 2196 x 700 x 754.2 mm
• Height including legs (min‑max): 884.2 - 934.2 mm
• Packed dimensions (W x D x H): 2280 x 820 x 986 mm
• Volume, gross: 625 l; Packed volume: 1.84 m³
• Number of sections: 4; Number of shelves: 8 (2 per door section)
• Shelf size: 1/1 GN
• Temperature range: -5 to +12 °C
• Min. cooling capacity at -10 °C: 350 W
• Connection load: 650 W; Power supply: 230V, 50Hz; Max. current: 2.7 A
• Maximum system pressure: 90 Bar
• Climate class: 5 (max. ambient 40 °C with 40% RH)
• Exterior / Interior: Stainless steel AISI 304
• Insulation: Polyurethane, 60 mm
• Gross weight: 144 kg; Net weight: 132 kg
• Legs / Castors: H = 130–180 mm (L); optional castor extension
• Cooling system: for remote cooling system (special order)
• Refrigerant compatibility: R744 (CO2)
• Country of origin: Turkey; Warranty: 1 year on parts

Accessories

• Shelf stainless, 325 x 530 mm (item 760660010)
• Set of castors 150 mm (2 braked + 2 unbraked) (item 760660011)
• Set of castors 200 mm (2 braked + 2 unbraked) (item 760660012)
• Set of castors 125 mm (2 braked + 2 unbraked) (item 760660022)
• Set of legs 130-180 mm (item 760660118)
• Set of legs 125-200 mm (item 760660119)
• Castor Extension Kit +50 mm (item 760660453)
• Door section (item 760660482)
• Drawer section 2 x 1/2 (item 760660483)
• Drawer section 3 x 1/3 (item 760660484)
• Shelf supports x2 (item 760660545)
• Shelf grey 325 x 530 mm (item 760660546)
• Flat worktop PREMIER 370 (item 760660581)
• Flat worktop with 50 mm splashback PREMIER 370 (item 760660585)
• Flat worktop with 100 mm splashback PREMIER 370 (item 760660586)
• Set of legs 100-150 mm (item 760660700)
