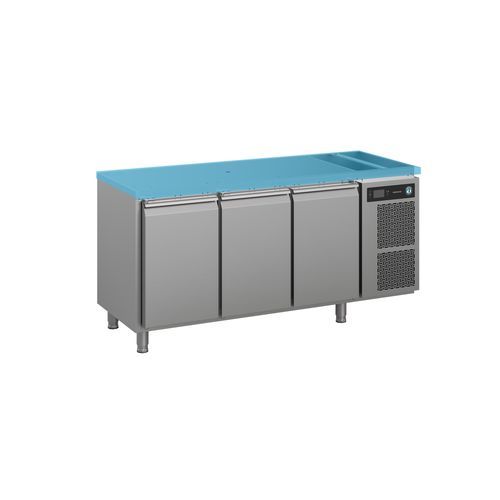

Commercial kitchen refrigerated counter PREMIER K 3 B DL DL DR L E CO2

3 doorswithout drawerstainless steel

Product overview
The Premier K 3 B DL DL DR L E CO2 is a 3-section refrigerated counter designed for connection to a remote cooling system. Supplied without controller and without worktop (fitted with insulated board) for built-in use under an existing tabletop. The unit includes three door sections, each fitted with two grey shelves (1/1 GN workstation). Outside dimensions: W 1751 x D 680 x H 750 mm (height including legs: 880–930 mm).

Key features

• Temperature stability: rapid recovery of internal temperature after door openings and defrost cycles.
• Integration-ready: front venting design eliminates the need for airflow under, at the sides or rear for flush installation.
• Maintenance access: compartmentalised, extractable cooling unit for ease of service.
• Hygiene and insulation: wide removable magnetic gaskets and triple insulation areas minimise cold air loss.
• Ergonomics: anti-tilt shelves, drawers with pull-out stops and long telescopic rails, full-length handles.
• Configuration options: multiple combinations of worktops, doors, drawers, legs/castors/electric elevation, temperature ranges and accessories in the PREMIER portfolio.

More features

• Soft-closing drawer (optional)
• Various worktop options and insulated board
• Increased body height: 750 mm
• Castor Extension Kit available to add 50 mm to castor height (optional)

Documentation

• Declaration of conformity (PDF available from manufacturer)
• Instruction manual (Remote Counter User Manual, multiple languages, PDF available from manufacturer)

Accessories (examples)

• Stainless shelf 325 x 530 mm (760660010)
• Set of castors 150 mm (2 braked + 2 unbraked) (760660011)
• Set of castors 200 mm (2 braked + 2 unbraked) (760660012)
• Set of castors 125 mm (2 braked + 2 unbraked) (760660022)
• Set of legs 130-180 mm (760660118) and set of legs 125-200 mm (760660119)
• Castor Extension Kit (extends castor height by 50 mm) (760660453)
• Door section (760660482)
• Drawer section with 2 x 1/2 drawers (760660483) and with 3 x 1/3 drawers (760660484)
• Shelf supports x2 (760660545) and grey shelf 325 x 530 mm (760660546)
• Flat worktop PREMIER 370 (760660581); flat worktop with 50 mm splashback (760660585); flat worktop with 100 mm splashback (760660586)
• Set of legs 100-150 mm (760660700)

Technical specifications

• Item number: 311030112102
• Model name: Premier K 3 B DL DL DR L E CO2
• Brand: Hoshizaki
• Warranty: 1 Year on Parts
• Country of origin: Turkey
• Included accessories: 2 grey shelves per door section
• Configuration: 3 door sections, 2 shelves per section (1/1 GN)
• Special order: counter for remote cooling system – longer lead times apply
• Width: 1751 mm (packed: 1835 mm)
• Depth: 680 mm (packed: 820 mm)
• Height: 750 mm (height incl. legs min/max: 880–930 mm; packed: 985 mm)
• Gross volume (packed): 1.48 m³
• Number of shelves: 6 (max 18)
• Shelf size: 1/1 GN
• Min. cooling capacity @ -10°C: 350 W
• Temperature range: +2 / +12 °C
• Climate class: 5 (max ambient 40°C, 40% RH)
• Connection load: 620 W
• Exterior / Interior: Stainless steel AISI 304
• Gross weight: 98 kg; Net weight: 88 kg
• Insulation: Polyurethane, 60 mm
• Legs / Castors: H = 130-180 mm (L)
• Number of sections: 3
• Power supply: 230 V, 50 Hz
• Max current: 2.6 A
• Maximum system pressure: 90 bar
• Gross volume: 463 l
• Worktop option: Without worktop (insulated board)
• Cooling system: for remote cooling system
• Refrigerant compatibility: R744 (CO2)
• SKU: 311030112102
