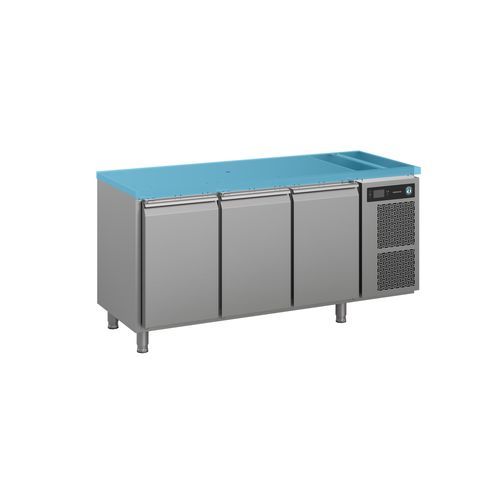

Commercial kitchen refrigerated counter PREMIER F 3 B DL DL DR L E CO2

3 doorswithout drawerfor frozen food

Overview
The Premier F 3 B DL DL DR L E CO2 is a 3‑section freezer counter designed for connection to a remote cooling system. Supplied without controller and without worktop (insulated board included) for built-in installation under an existing tabletop. Each of the 3 door sections includes 2 grey shelves (1/1 GN). Outside dimensions (W x D x H): 1751 x 680 x 750 mm; height with legs 880–930 mm.

Series information
Hoshizaki PREMIER is a series of heavy‑duty cabinets and counters engineered for energy‑efficient refrigeration (Climate Class 4/5). The construction uses stainless steel and robust hinges to meet the demands of professional commercial kitchens.

Key features

• Temperature stability: rapid recovery of internal temperature after door openings and defrost cycles.
• Seamless installation: front venting design eliminates the need for airflow under, at the sides or behind the unit.
• Serviceability: compartmentalised cooling unit is extractable for maintenance.
• Hygiene and efficiency: wide removable magnetic gaskets and triple‑insulation areas to reduce cold air loss.
• Ergonomics: anti‑tilt shelves, drawers with pull‑out stops and full‑length handles.
• Flexible configurations: multiple combinations of worktops, doors, drawers, legs/castors/electric elevation and accessories.
• Optional items: soft‑closing drawers, castor extension kit (adds 50 mm), different worktop variants.

Documentation

• Declaration of conformity (PDF)
• Instruction manual (ALL LANGUAGE Remote Counter User Manual) (PDF)

Accessories

• Shelf stainless, 325 x 530 mm — Item number 760660010
• Set of castors 150 mm (2 x braked and 2 x unbraked) — Item number 760660011
• Set of castors 200 mm (2 x braked and 2 x unbraked) — Item number 760660012
• Set of castors 125 mm (2 x braked and 2 x unbraked) — Item number 760660022
• Set of legs 130-180 mm — Item number 760660118
• Set of legs 125-200 mm — Item number 760660119
• Castor Extension Kit (extends height of castors by 50 mm) — Item number 760660453
• Door section — Item number 760660482
• Drawer section with 2 x 1/2 drawers — Item number 760660483
• Drawer section with 3 x 1/3 drawers — Item number 760660484
• Shelf supports x 2 — Item number 760660545
• Shelf grey 325 x 530 mm — Item number 760660546
• Flat worktop PREMIER 370 — Item number 760660581
• Flat worktop with 50mm splashback PREMIER 370 — Item number 760660585
• Flat worktop with 100mm splashback PREMIER 370 — Item number 760660586
• Set of legs 100-150 mm — Item number 760660700

Technical specifications

• Item number: 313030112102
• Model name: Premier F 3 B DL DL DR L E CO2
• Brand: Hoshizaki
• Product: 3-Section Freezer Counter without controller for remote cooling system
• Configuration: Without worktop (with insulated board) for built-in under existing tabletop; 3 door sections each with 2 grey shelves
• Warranty period: 1 Year on Parts
• Country of origin: Turkey
• Width: 1751 mm (packed width: 1835 mm)
• Depth: 680 mm (packed depth: 820 mm)
• Height: 750 mm (height incl. legs: 880–930 mm; packed: 985 mm)
• Packed volume: 1.48 m³
• Number of shelves: 6 (2 per door section); shelf size: 1/1 GN
• Min. cooling capacity (F cabinets at -30°C): 376 W
• Temperature range span: -25 to +12 °C
• Climate class: 5 (max ambient 40°C / 40% RH)
• Connection load: 620 W; Power supply: 230V, 50Hz; Max current: 2.6 A
• Refrigerant compatibility: R744 (CO2); Max system pressure: 90 Bar
• Exterior / Interior: Stainless steel AISI 304
• Gross weight: 98 kg; Net weight: 88 kg
• Insulation: Polyurethane, thickness 60 mm
• Legs / Castors: H = 130-180 mm (L)
• Number of sections: 3
• Worktop option: Without worktop B
• Cooling system: For remote cooling system (unit supplied without controller)
• SKU: 313030112102
• Ordering note: This freezer counter for connection to a remote cooling system is made to special order. Allow for extended lead times.
