Catering refrigerated counter PREMIER M 3 B DL DL DR L E CO2

for restaurantfor commercial kitchen3 doors

Product overview

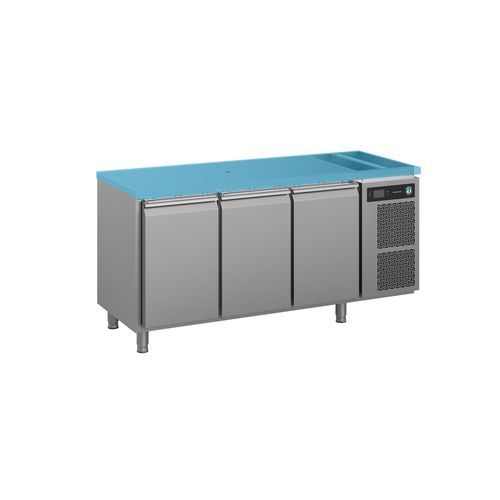

The Premier M 3 B DL DL DR L E CO2 is a 3‑section refrigerated counter designed for connection to a remote cooling system. Delivered without controller for the remote system and without worktop (supplied with insulated board) for built‑in installation under an existing tabletop. Each of the three door sections includes two grey shelves. Workstation configured for 1/1 GN.

Key features

• Temperature stability: rapid temperature recovery after door openings and defrost cycles.
• Seamless kitchen design: front venting requires no airflow under, at the sides or behind the unit for integrated layouts.
• Easy maintenance: extractable, compartmentalized cooling unit for simplified service access.
• Hygiene & cooling efficiency: removable magnetic gaskets and triple insulation areas reduce cold loss and improve sealing.
• Ergonomic details: anti-tilt shelves, drawers with pull-out stops, extended telescopic rails and full-length handles.
• Modular options: various worktop solutions, doors, drawers, legs/casters/electric elevation, temperature ranges and accessories.
• Optional extras: Soft Closing Drawer; increased body height (750 mm); castor extension kit (+50 mm) available.

Product details
Delivered without worktop (with insulated board) for built‑in under existing tabletop. Configuration: 3 door sections × 2 grey shelves each (6 shelves total). Typical workstation external dimensions referenced as W × D × H = 750 × 680 × 880–930 mm (1/1 GN workstation). Full unit dimensions: width 1751 mm, depth 680 mm, height 750 mm (height including legs 880–930 mm). This counter is intended for connection to a remote cooling system and is available on special order only; longer lead times apply.

Technical specifications

• Item number / SKU: 312030112102
• Model name: Premier M 3 B DL DL DR L E CO2
• Brand: Hoshizaki
• Country of origin: Turkey
• Warranty: 1 year on parts
• Number of sections: 3
• Number of shelves: 6 (2 per door section) – shelf size 1/1 GN
• Width (unit): 1751 mm
• Depth (unit): 680 mm
• Height (unit): 750 mm
• Height including legs: 880–930 mm (legs H = 130–180 mm)
• Packed dimensions (W×D×H): 1835 × 820 × 985 mm
• Gross volume (packed): 1.48 m³
• Gross weight: 98 kg / Net weight: 88 kg
• Insulation: 60 mm polyurethane
• Exterior / Interior: Stainless steel AISI 304
• Temperature range: -5 °C to +12 °C
• Cooling capacity (min., K and M cabinets at -10 °C): 350 W
• Climate class: 5 (max ambient 40 °C / 40% RH)
• Connection load: 620 W • Power supply: 230 V, 50 Hz • Max current: 2.6 A
• Maximum system pressure: 90 bar
• Volume, gross: 463 l
• Cooling system: for remote cooling system (no controller supplied)
• Refrigerant compatibility: R744
