Commercial kitchen refrigerated counter PREMIER F 4 A DL DL DL DR L E CO2

4 doorswithout drawerfor frozen food

Product overview

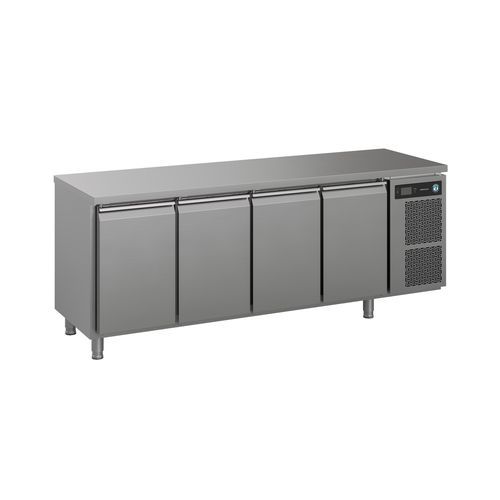

The Premier F 4 A DL DL DL DR L E CO2 is a 4-section freezer counter designed for connection to a remote cooling system (without onboard controller). It features a stainless steel worktop and four door sections, each fitted with two grey 1/1 GN shelves. External dimensions (W × D × H): 2196 × 700 × 754.2 mm (height with legs: 884.2–934.2 mm). This unit is intended for professional kitchen installations and is supplied on special order.

Key features

• TEMPERATURE STABILITY: Rapid temperature recovery after door openings and defrost cycles to maintain -25 to +12°C range.
• SEAMLESS KITCHEN INTEGRATION: Front venting design eliminates the need for airflow underneath, at the sides or rear for flush installation.
• EASY MAINTENANCE: Extractable compartmentalised cooling unit for straightforward access and servicing.
• HYGIENE & EFFICIENCY: Wide removable magnetic gaskets and triple insulation zones reduce cold-air loss and simplify cleaning.
• ERGONOMIC DESIGN: Anti-tilt shelves, drawers with pull-out stops, extended telescopic rails and full-length handles for professional use.
• CONFIGURATION OPTIONS: Multiple combinations of worktops, doors, drawers, legs/castors/electric elevation, temperature ranges and accessories available.
• ADDITIONAL OPTIONS: Soft-closing drawer, insulation board variants, increased body height (750 mm) and castor extension kit (+50 mm) available as accessories.

Documentation available

• Declaration of conformity (remote counters)
• Instruction manual: Remote Counter User Manual (all languages)

Caractéristiques / spécifications techniques

• Item number: 413001112102
• Model name: Premier F 4 A DL DL DL DR L E CO2
• Brand: Hoshizaki
• Warranty period: 1 Year on Parts
• Country of origin: Turkey
• Accessories included: 2 grey shelves per door section (8 shelves total)
• Title: 4-Section Freezer Counter without controller for remote cooling system
• Equipped with: Stainless steel AISI 304 worktop and interior, 4 door sections each with 2 grey 1/1 GN shelves
• Note: Counter for connection to remote cooling system is special order only; longer lead times apply
• Width: 2196 mm
• Width (packed): 2280 mm
• Depth: 700 mm
• Depth (packed): 820 mm
• Height (body): 754.2 mm
• Height including legs (min): 884.2 mm
• Height including legs (max): 934.2 mm
• Height (packed): 986 mm
• Volume (packed): 1.84 m³
• Number of shelves: 8 (2 per door section)
• Shelf size: 1/1 GN
• Min. cooling capacity (F cabinets at -30°C): 376 W
• Temperature range: -25/+12°C
• Climate class: 5 (max ambient 40°C / 40% RH)
• Connection load: 650 W
• Exterior: Stainless steel AISI 304
• Interior: Stainless steel AISI 304
• Gross weight: 144 kg
• Net weight: 132 kg
• Insulation thickness: 60 mm (polyurethane)
• Legs / Castors: H = 130–180 mm (L)
• Number of sections: 4
• Power supply: 230 V, 50 Hz
• Maximum current: 2.7 A
• Maximum system pressure: 90 Bar
• Volume, gross: 625 l
• Worktop options: Flat worktop A
• Cooling system: For remote cooling system (refrigerant compatibility: R744)
• Configuration: Models with door sections
• SKU: 413001112102
