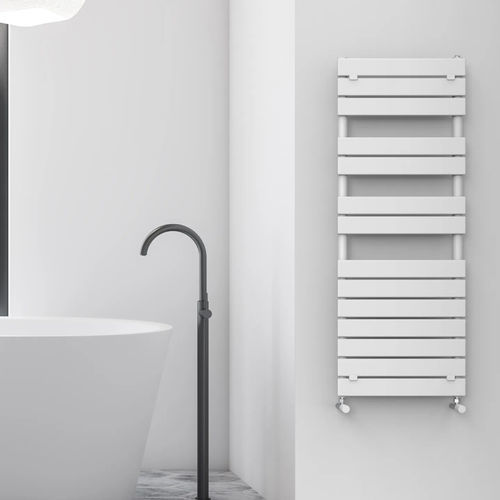

Hot water towel radiator COBALTO

contemporarysteelwhite

Description
Flat blade towel warmer. The Cobalto Linea towel radiator is designed to enrich spaces dedicated to personal care and relaxation with new shapes.
Thanks to the flat blade, this towel warmer offers an enveloping aesthetic and high efficiency and thermal output.

Product information

• Product type: Towel warmer
• Mode: Hydraulic
• Collection: Cobalto
• Spaces: Bathroom, Laundry Room
• Applications: Hospital, Office, Residential

Technical features - summary

• Lengths / Widths: 500 mm
• Heights: 774-1636 mm
• Depth: 49 mm
• Thermal output Δt 50°C: 383-777 W
• Certifications: CE, EN442
• Material: Steel UNI EN 10130:2007
• Shape: Straight blades
• Standard colours: RAL 9016 gloss; Other colours*

Other technical notes

• Center distance: 450 mm
• Round collectors Ø 38 mm
• Max working pressure: 4 bar
• Test pressure: 5.2 bar
• Max working temperature: 110 °C
• Connections and standard supply:
  • 3 x 1/2" connections, internal thread
  • Fixing kit consisting of support brackets and 1 x 1/2" air vent

Technical specifications

• Product type: Towel warmer
• Model / Denomination: Cobalto
• Operation mode: Hydraulic
• Collection: Cobalto
• Spaces: Bathroom; Laundry Room
• Applications: Hospital; Office; Residential
• Lengths / Widths: 500 mm
• Heights: 774-1636 mm
• Depth: 49 mm
• Thermal output (Δt 50°C): 383-777 W
• Max working pressure: 4 bar
• Test pressure: 5.2 bar
• Max working temperature: 110 °C
• Center distance: 450 mm
• Collectors diameter: Ø 38 mm
• Connections: 3 x 1/2" internal thread
• Standard supply: Fixing kit (support brackets) and 1 x 1/2" air vent
• Material: Steel UNI EN 10130:2007
• Shape: Straight flat blades
• Certifications: CE, EN442
• Standard colour: RAL 9016 gloss (other colours available)
