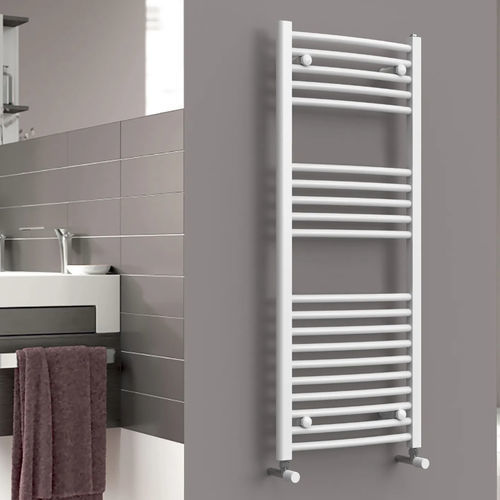

Hot water towel radiator FANTASIA PARENTESI

traditionalsteelwhite

Description
The towel radiator features a classic design reinterpreted with curved round tubes for a dynamic, fluid appearance. It is designed for efficient thermal performance and practical installation, use and maintenance, suitable for bathroom and laundry environments in residential, office and hospital applications.

Product information

• Product type: Towel warmer
• Mode: Hydraulic
• Collection: Fantasia
• Spaces: Bathroom, Laundry Room
• Applications: Residential, Office, Hospital

Dimensions
Lengths / Widths: 500-600 mm
Heights: 691-1726 mm
Depth: 48-58 mm

Performance
Thermal output (Δt 50°C): 311-887 W

Connections and standard supply

• 3 x 1/2" connections, internal thread
• Fixing kit consisting of support brackets and 1 x 1/2" air vent

Other product details

• Center distance: 350-700 mm
• Semi-oval collectors: 40×30 mm
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Max working temperature: 110 °C

Technical specifications

• Material: Steel UNI EN 10130:2007
• Shape: Curved round tubes
• Standard colours: RAL 9016 gloss
• Certifications: CE, EN442
• Thermal output (Δt 50°C): 311-887 W
• Lengths / Widths: 500-600 mm
• Heights: 691-1726 mm
• Depth: 48-58 mm
• Center distance: 350-700 mm
• Semi-oval collectors: 40×30 mm
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Max working temperature: 110 °C
• Connections: 3 x 1/2" internal thread
• Standard supply: fixing kit (support brackets) and 1 x 1/2" air vent
• Additional: BIM file available
