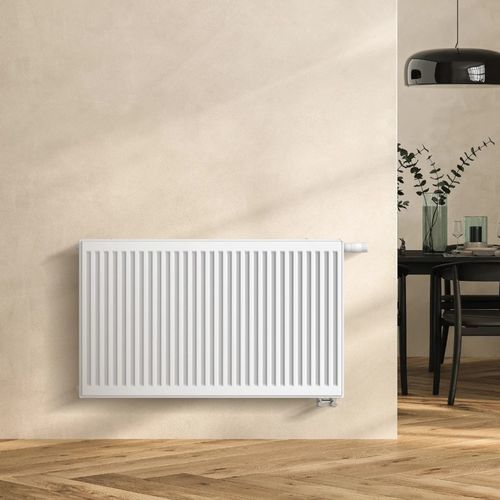

Hot water radiator PLATTELLA V8

contemporarysteelgray

Plattella V8 features a sober, linear, and timeless design, aimed at heating spaces of various styles and uses. The aesthetic versatility of Plattella V8 allows you to choose the panel size even after the connections have been installed. Other technical notes Center distance: I H-60mm – I1 50 mm – I2 50 mm Pipes distance 33.33 mm Threading of fittings 1/2″G-3/4″G Working pressure 10 bar Test pressure 13 bar Max working temperature 110 °C 3-stage painting process Standard supply: upper grille screwed side panels F7 brackets (for mod.11 GB1 brackets) 2 x 1/2″ side connections 2 central lower 3/4″ connections with external thread, 50 mm center distance 2 lateral lower 3/4″ connections with external thread, 50 mm center distance 2 x 1/2″ blind plugs 1 x 1/2″ air vent
