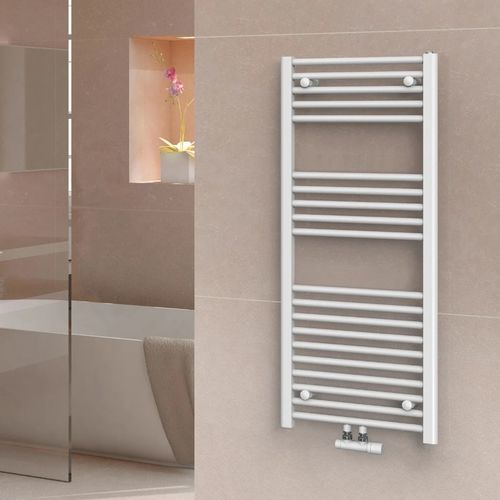

Hot water towel radiator FANTASIA

contemporarysteelwhite

Description
Clean, compact lines designed for efficient heating and easy installation. The spacing between the tubes allows convenient towel storage. This model is a best-selling item from RADIATORS. Available in the standard version and with central connections.

Product type & usage

• Product type: Towel warmer (hydraulic)
• Operation: Hydraulic
• Collection: Fantasia
• Spaces: Bathroom, Laundry Room
• Applications: Hospital, Office, Residential

Plus product

• BIM file available
• Fixing kit included

Technical features (summary)

• Lengths / Widths: 500-600 mm
• Heights: 691-1726 mm
• Depth: 30 mm
• Thermal output Δt 50°C: 311-887 W
• Power: –
• IP: –
• Insulation class: –
• Voltage: –
• Plug: –
• Certifications: CE, EN442
• Material: Steel UNI EN 10130:2007
• Shape: Round tubes
• Standard colours: RAL 9016 gloss

Other technical notes

• Center distance: 50 mm
• Semi-oval collectors: 40×30 mm
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Max working temperature: 110 °C
• Connections and standard supply:
  • 3 x 1/2" connections, internal thread
  • Fixing kit consisting of support brackets and 1 x 1/2" air vent

Characteristics / technical specifications

• Product type: Towel warmer
• Mode: Hydraulic
• Collection: Fantasia
• Spaces: Bathroom, Laundry Room
• Applications: Hospital, Office, Residential
• Lengths / Widths: 500-600 mm
• Heights: 691-1726 mm
• Depth: 30 mm
• Thermal output Δt 50°C: 311-887 W
• Center distance: 50 mm
• Semi-oval collectors: 40×30 mm
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Max working temperature: 110 °C
• Connections: 3 x 1/2" internal thread
• Standard supply: fixing kit (support brackets) and 1 x 1/2" air vent
• Material: Steel UNI EN 10130:2007
• Shape: Round tubes
• Standard colour: RAL 9016 gloss
• Certifications: CE, EN442
