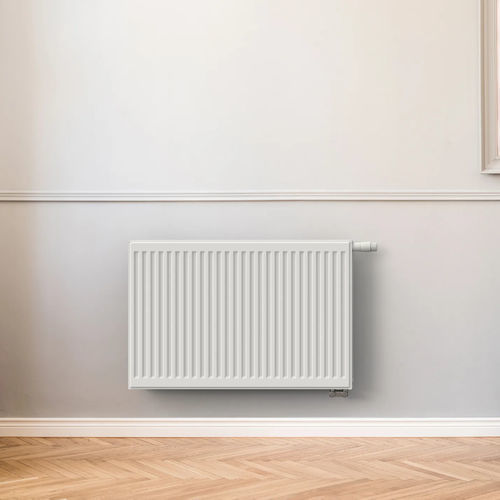

Hot water radiator PLATTELLA V6L

contemporarysteelgray

Plattella V6L is characterized by its sober, linear and timeless aesthetic which aims to heat environments with different styles and intended uses. The use of the best quality steel, a cutting-edge production process, brilliant and high-resistance painting with rigorous tests, are just some of the elements that make this range of radiators a reference in terms of reliability and versatility. Other technical notes Center distance: H-60 mm Pipes distance 33.33 mm Threading of fittings 1/2″G-3/4″G Working pressure 10 bar Test pressure 13 bar Max working temperature 110 °C 3-stage painting process Standard supply: upper grille screwed side panels 4 x 1/2″ side connections 2 lower connections 3/4″, external thread 50 mm center distance 3 x 1/2″ blind plugs The product is supplied with pre-assembled plastic covers which must be removed before installation and replaced with the supplied caps. Fixing kit not included in supply. Thermostatic insert and thermostatic head can be ordered separately.
