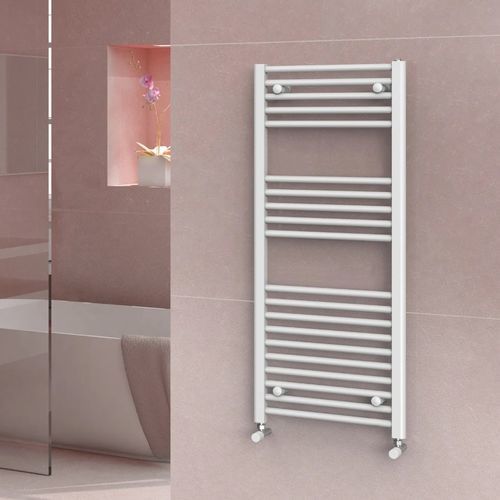

Hot water towel radiator FANTASIA LINEA

contemporarysteelanthracite

Description
Clean, compact lines designed for efficient heating and easy installation. The spacing between tubes allows convenient towel storage. Available as a standard version or with central connections; a best-selling model from DL Radiators.

Product details

• Product type: Towel warmer
• Mode: Hydraulic
• Collection: Fantasia
• Spaces: Bathroom, Laundry room
• Applications: Hospital, Office, Residential
• Brand: DL Radiators

Product highlights

• BIM file available
• Fixing kit included (support brackets and 1 x 1/2" air vent)
• Tube spacing for easy towel storage
• Installation: standard version or central connections

Technical features
Lengths/Widths: 400-750 mm
Heights: 691-1726 mm
Depth: 30 mm
Thermal output Δt 50°C: 261-1081 W

Other technical notes

• Center distance: 350-700 mm
• Semi-oval collectors 40×30 mm
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Max working temperature: 110 °C
• Connections and standard supply:
  • 3 x 1/2" connections, internal thread
  • Fixing kit consisting of support brackets and 1 x 1/2" air vent

Material & certifications

• Material: Steel UNI EN 10130:2007
• Shape: Round tubes
• Standard colours: RAL 9016 gloss, Anthracite, Chrome
• Certifications: CE, EN442
