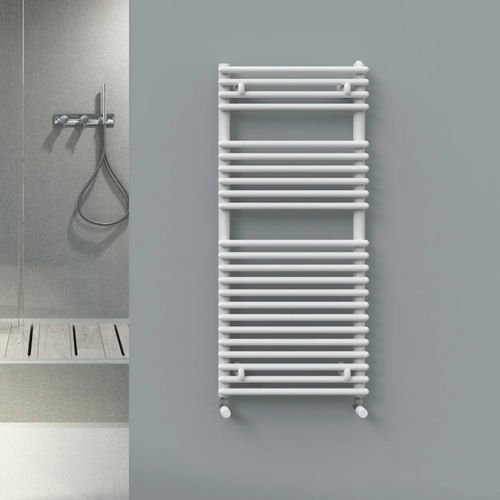

Hot water towel radiator IRIDIO

minimalist designsteelwhite

Product details

• Product type: Towel warmer
• Mode: Hydraulic
• Collection: Iridio
• Brand: DL Radiators
• Spaces: Bathroom, Laundry Room
• Applications: Hospital, Office, Residential

Description
Towel radiator with an essential and synthetic design intended to equip spaces with a defined character and a style beyond trends.

Materials & Design
Constructed in steel with round profiles for a simple, timeless geometry.

Plus product

• Fixing kit included

Technical features

• Widths: 500 mm
• Heights: 1110-1725 mm
• Depth: 56 mm
• Thermal output Δt 50°C: 565-895 W
• Certifications: CE, EN442
• Material: Steel UNI EN 10130:2007
• Shape: Round tubes
• Standard colours: RAL 9016 gloss
• Other technical notes:
  • Center distance: 450 mm
  • Round collectors Ø 32 mm
  • Max working pressure: 4 bar
  • Test pressure: 5.2 bar
  • Max working temperature: 110 °C
  • Connections and standard supply:
    • 3 x 1/2" connections, internal thread
    • Fixing kit consisting of support brackets and 1 1/2" air vent

Characteristics / technical specifications

• Model: Iridio
• Type: Towel warmer (Hydraulic)
• Material: Steel UNI EN 10130:2007
• Heights available: 1110-1725 mm
• Width: 500 mm
• Depth: 56 mm
• Thermal output (Δt 50°C): 565-895 W
• Max working pressure: 4 bar
• Test pressure: 5.2 bar
• Max working temperature: 110 °C
• Connections: 3 x 1/2" internal thread
• Standard supply: fixing kit with support brackets and 1 1/2" air vent
• Certifications: CE, EN442
• Standard colour: RAL 9016 gloss
