Hot water towel radiator AGATA

designsteelwhite

Description

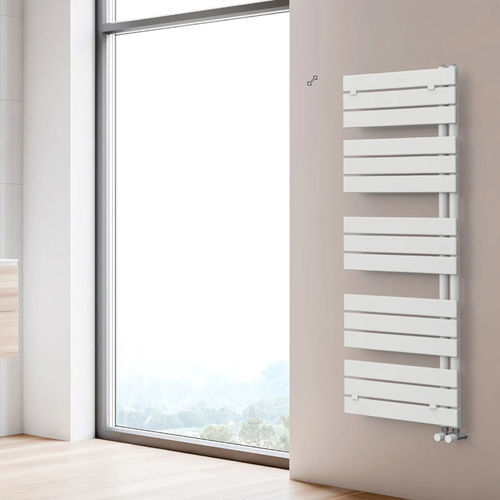

The Agata towel radiator is a hydraulic towel warmer with flat asymmetric blades and a minimalist profile designed for bathrooms and utility rooms. Its two round collectors mounted side by side leave the opposite side visually open for a light, linear appearance.

Design
Two round collectors are positioned next to each other on the same side, creating an asymmetrical, airy aesthetic. Straight flat blades provide a clean, architectural look while ensuring practical towel support.

Key features

• Flat blades with asymmetric design
• Two round collectors placed side by side
• Straight blade geometry
• Standard finish RAL 9016 gloss; other finishes available
• Fixing kit included

Technical features
Width: 550 mm
Heights: 1108–1756 mm
Depth: 49 mm
Thermal output Δt 50°C: 592–894 W
Material: Steel (UNI EN 10130:2007)
Certifications: CE, EN442

Other technical notes

• Center distance: 450 mm
• Round collectors Ø 38 mm
• Max working pressure: 4 bar
• Test pressure: 5.2 bar
• Max working temperature: 110 °C
• Connections and standard supply:
  • 4 x 1/2" connections, internal thread
  • Fixing kit consisting of wall brackets, 1 x 1/2" air vent and 1 x blind plug

Specifications

• Model: Agata
• Product type: Towel warmer (hydraulic)
• Material: Steel (UNI EN 10130:2007)
• Height range: 1108–1756 mm
• Width: 550 mm
• Depth: 49 mm
• Thermal output (Δt 50°C): 592–894 W
• Max working pressure: 4 bar
• Test pressure: 5.2 bar
• Max working temperature: 110 °C
• Connections: 4 x 1/2" internal thread
• Collectors diameter: Ø 38 mm
• Certifications: CE, EN442
