Hot water radiator PLATTELLA C6

traditionalsteelgray

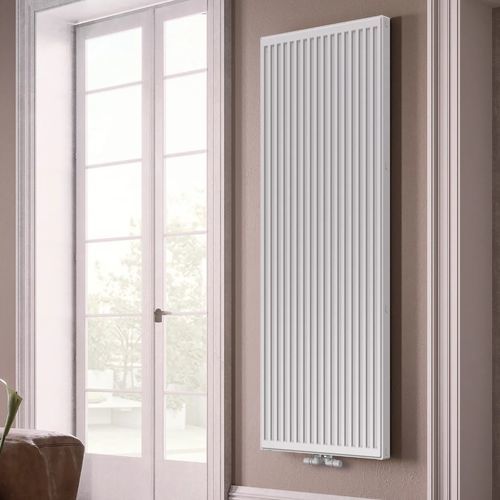

Plattella C6 Vertical is the vertical panel radiator, a classic characterized by a sober and always current evergreen style and high thermal efficiency. Plattella C6 Vertical is suitable for decorating environments whose conformation requires a height development of the radiator with a highly reliable and efficient solution. Other technical notes Center distance: I1 50 mm – I2 L-60 mm Pipes distance 33.33 mm 1/2” G Thread female Working pressure 10 bar Test pressure 13 bar Max working temperature 110 °C 3-stage painting process Standard supply: upper grille screwed side panels which guarantee greater safety** 2 lower connections 1/2″, internal thread 50 mm center distance 4 x 1/2″ internal thread connections 1 installation kit consisting of GB** model brackets, 3 x 1/2″ blind plugs and 1 x 1/2″ air vent The product is supplied with pre-assembled plastic covers which must be removed before installation and replaced with the supplied caps.
