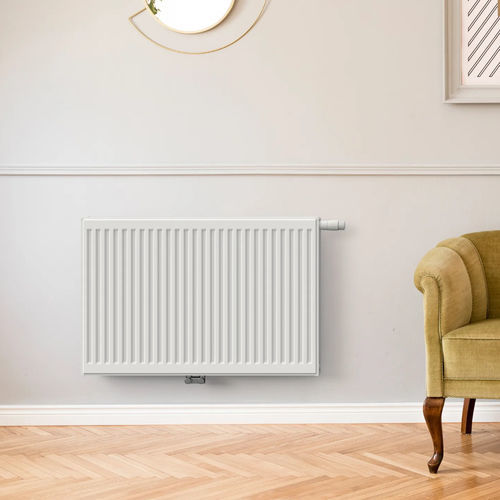

Hot water radiator PLATTELLA V6 C

contemporarysteelgray

Plattella V6C is characterized by its sober, linear and timeless aesthetic which aims to heat environments with different styles and intended uses. The aesthetic versatility of Plattella V6C allows you to choose the size of the panel even after positioning the connections. Other technical notes Center distance: I1 50 mm – I2 H-60 mm Pipes distance 33.33 mm Threading of fittings 1/2″G-3/4″G Working pressure 10 bar Test pressure 13 bar Max working temperature 110 °C 3-stage painting process Standard supply: upper grille screwed side panels 4 x 1/2″ side connections 2 lower central connections 3/4″, external thread 50 mm center distance 3 x 1/2″ blind plugs 1 x 1/2″ air vent The product is supplied with pre-assembled plastic covers which must be removed before installation and replaced with the supplied caps. Fixing kit not included in supply. Thermostatic insert and thermostatic head can be ordered separately.
