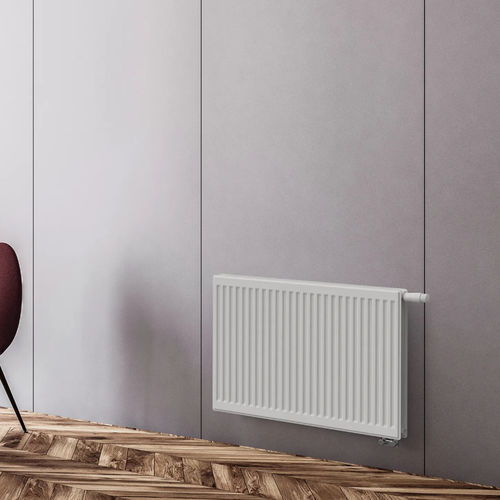

Hot water radiator PLATTELLA V6 IGIENE

contemporarysteelwhite

Plattella V6 Hygiene: a panel radiator perfect for public spaces such as schools and hospitals, designed with the specific needs of these environments in mind. The Plattella V6 Hygiene steel panel has no grille or sides and allows easy access to the radiator compartment for cleaning. Furthermore, it does not include internal convectors, thus avoiding situations where dust typically nests. Other technical notes Center distance: I1 50 mm – I2 H-60 mm Pipes distance 33.33 mm 1/2” G Thread female Working pressure 10 bar Test pressure 13 bar Max working temperature 110 °C 3-stage painting process Standard supply: 4 x 1/2″ connections 2 lower connections 3/4″, external thread 50 mm center distance 3 x 1/2″ blind plugs 1 x 1/2″ air vent The product is supplied with pre-assembled plastic covers which must be removed before installation and replaced with the supplied caps. Fixing kit not included in supply. Thermostatic insert and thermostatic head can be ordered separately.
