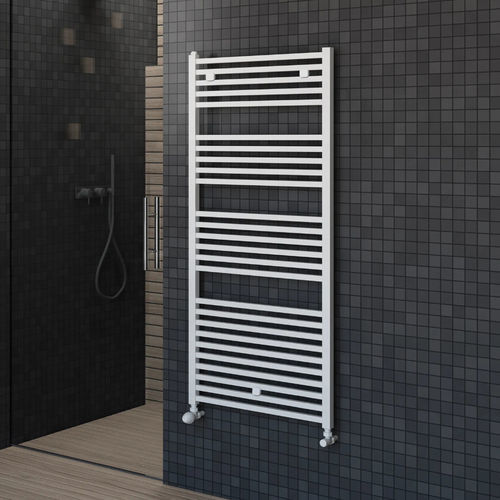

Hot water towel radiator CORTINA

contemporarysteelwhite

Description
Sober, essential design conceived for contemporary interiors. The agile, rigorous silhouette is structured around square collectors and square tubes, creating a minimal, sculpted towel radiator that becomes the focal point of refined bathrooms.

Product information

• Product type: Towel warmer
• Mode: Hydraulic
• Collection: Cortina
• Spaces: Bathroom, Laundry Room
• Applications: Hospital, Office, Residential
• Brand: DL Radiators

Plus product

• Fixing kit included (support brackets and 1 x 1/2" air vent)

Technical features

• Lengths / Widths: 480-580 mm
• Heights: 1198-1731 mm
• Depth: 30 mm
• Thermal output Δt 50°C: 628-1162 W
• Power: –
• IP: –
• Insulation class: –
• Voltage: –
• Plug: –
• Certifications: CE, EN442
• Material: Steel UNI EN 10130:2007
• Shape: Square tubes
• Standard colours: RAL 9016 gloss, Other colours*

Other technical notes

• Center distance: 550-700 mm
• Square collectors: 30×30 mm
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Max working temperature: 110 °C
• Connections and standard supply:
  • 3 x 1/2" connections, internal thread
  • Fixing kit consisting of support brackets and 1 x 1/2" air vent
