Recessed downlight SASSO 140

surface mountedLEDround

Short description

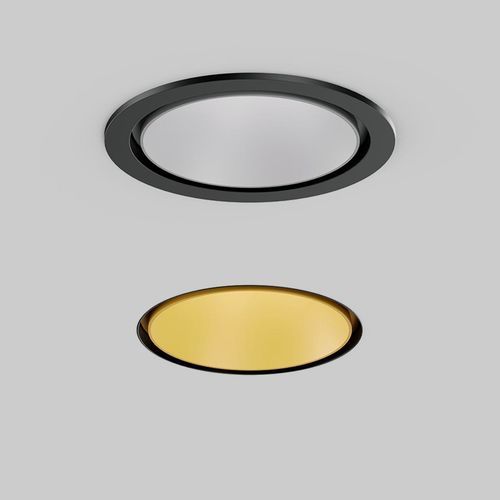

Round recessed spotlight SASSO 140 designed for installation in mounting set (trimless or with trim) with a ball catch system. Lacquered surface light inset and high-quality lens system provide symmetric radiation. COB LED technology ensures high efficiency and eliminates multiple shadows. Available with several beam angles and tunable white options; suitable for high rooms and spaces requiring controlled glare (UGR ≤ 16).

Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K, TW (tunable white)
• CRI ≥ 90
• 2 SDCM
• Up to 6000 lm | 113 lm/W
• L80 @ 50,000 h
• Dimming options: non DIM, DALI-2

Colour options

• white
• white/black
• white/gold
• white/matt silver
• black
• black/white
• black/gold
• black/matt silver

Availability
Available from Q1/27

Versions

• Recessed (this page)
• Surface version available
• Suspended version available

Light distribution

• Super spot
• Spot
• Medium
• Flood
• Wide flood

Additional features

• Tool-free installation in mounting set (trimless or with trim) using ball catch system
• Symmetric radiation characteristic via high-quality lens system
• Multiple beam angles for application flexibility
• COB LED technology for high efficiency and elimination of multiple shadows
• High lumen output suitable for high ceilings
• Tunable white options (e.g. 1800–4000 K or 2700–6500 K depending on TW variant)
• Glare control: UGR ≤ 16
• Long lifetime: L80 @ 50,000 h
• DALI-2 supported; non-dimmable option also available

Technical specifications

• Model / Denomination: SASSO 140
• Type: Round recessed spotlight
• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K, TW
• Colour rendering: CRI ≥ 90
• Tightness of chromaticity: 2 SDCM
• Luminous flux: up to 6000 lm
• System efficacy: up to 113 lm/W
• Lifetime: L80 @ 50,000 h
• Dimming: non DIM or DALI-2
• LED technology: COB (Chip on Board)
• Glare control: UGR ≤ 16
• Beam angle options: super spot, spot, medium, flood, wide flood
• Versions: recessed, surface, suspended
• Intended use: high rooms / high ceilings
• Availability: from Q1/27
