Pendant spotlight SASSO 140

LEDcylindricalindoor

Quickinfo

• 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90, 2 SDCM
• up to 5120 lm | 128 lm/W
• L80 @ 50 000 h
• non DIM, DALI-2

Description

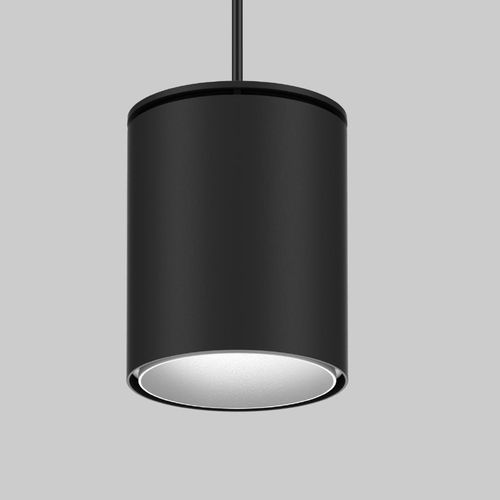

Cylindrical spotlight made of aluminium with lacquered surface light inset and powder-coated housing. Pendant fitting with cable suspension; feed included (black or white); cable can be individually shortened. Symmetric radiation characteristic, ensured by a high-quality lens system. COB (Chip on Board) light source technology for high efficiency and no multiple shadows. Canopy with provision for through wiring; converter included in canopy.

Colour

• white
• white/black
• white/gold
• white/matt silver
• black
• black/white
• black/gold
• black/matt silver

Availability
Available from Q2/27

Simple drawing
Simple drawing available for ceiling-suspended installation.

Light distribution

• super spot
• spot
• medium
• flood
• wide flood

Variants & features

• surface and suspended versions available
• high lumen output option for high ceilings

Technical specifications

• Material: aluminium
• Surface light inset: lacquered
• Housing finish: powder coated
• Mounting: pendant fitting with cable suspension; cable can be individually shortened
• Feed: included (black or white)
• Radiation characteristic: symmetric, precise due to high-quality lens system
• Light source technology: COB (Chip on Board)
• Optical: no multiple shadows
• LED performance: up to 5120 lm, up to 128 lm/W
• Colour temperature options: 2700 K, 3000 K, 3500 K, 4000 K
• Colour rendering: CRI ≥ 90
• Tolerance: 2 SDCM
• Lifespan metric: L80 @ 50 000 h
• Dimming options: non DIM or DALI-2
• Installation: canopy for through wiring; converter included in canopy
