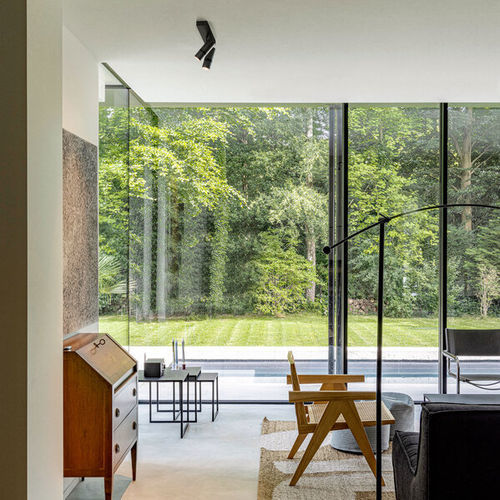

Surface-mounted spotlight BO PRO 45

LEDcylindricalhome

Quickinfo
2700 K, 3000 K, 3500 K
CRI ≥ 90, 2 SDCM
up to 2840 lm | 126 lm/W
L85 @ 50 000 h
non DIM, DALI-2

Description
Cylindrical surface-mounted spotlight in aluminium with powder-coated finish. Spotlight head is rotatable (350°) and tiltable (90°). Available in single or double lamp variants. Surface-mounted housing includes converter; mounting plate with pre-assembled converter unit can be pre-mounted. Luminaire housing attaches without tools by interlock. High-quality lens system provides precise beam characteristics with multiple beam angles. Recessed light point plane reduces glare. Changeable optics and optical attachments available as accessories. COB (Chip on Board) LED technology for high efficiency and elimination of multiple shadows. Available non-dimmable or DALI-2 depending on model.

Features

• Cylindrical aluminium housing, surface powder coated
• Spotlight head rotatable 350° and tiltable 90°
• Single-lamp or double-lamp versions
• Surface-mounted housing includes converter; mounting plate with pre-assembled converter
• Tool-free attachment of luminaire housing by interlock
• High-quality lens system with precise radiation characteristics and multiple beam angles
• Good glare reduction via recessed light point plane
• Optical attachments and changeable optics available as accessories
• COB LED technology for high efficiency and no multiple shadows
• Energy-efficient LEDs with very good colour rendering (CRI ≥ 90)

Colour options

• traffic white
• jet black
• aluminium raw

Light distribution

• spot
• medium
• flood
• wide flood

Availability
Available from Q2/27

Technical specifications

• Colour temperatures: 2700 K, 3000 K, 3500 K
• CRI: ≥ 90
• Tolerance: 2 SDCM
• Light output: up to 2840 lm
• System efficacy: up to 126 lm/W
• Lumen maintenance: L85 @ 50,000 h
• Dimming: non DIM or DALI-2 (model dependent)
• LED technology: COB (Chip on Board)
• Material: aluminium (surface powder coated)
• Mounting: surface-mounted housing with converter included; mounting plate with pre-assembled converter unit
• Optics: high-quality lens system; changeable optics and optical attachments available
• Adjustability: 350° rotation, 90° tilt
• Glare control: recessed light point plane for good glare reduction
• Serviceability: luminaire installed and exchanged without tools by interlock
