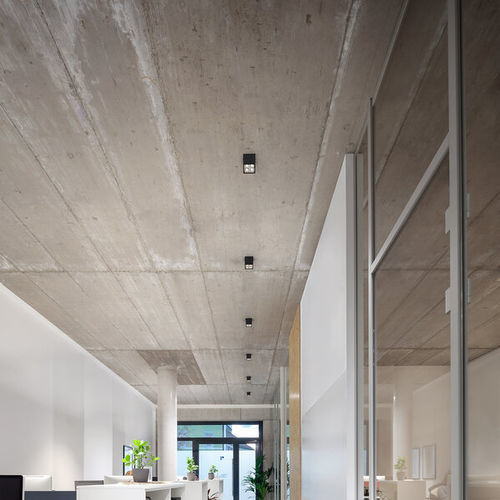

Surface mounted downlight UNICO Q1 / Q4

ceiling-mountedLEDsquare

Description
Square surface-mounted multi-downlight UNICO Q1 / Q4 in aluminium. Configurable with one (Q1) or four (Q4) individually selectable or pre-specified LED light elements. Luminaire housing attaches to mounting plate without tools via interlock. Converter/driver integrated into the luminaire housing. Surface powder coated finish. Micro-faceted aluminium-vapourised reflector for defined photometry. Available in multiple symmetrical and asymmetric reflector distributions; selectable UGR classes for glare control; energy-efficient high-power LEDs with CRI ≥ 90.

Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Colour rendering: CRI ≥ 90 / 2 SDCM (initial MacAdam)
• Glare classes: UGR ≤ 10, UGR ≤ 16, UGR ≤ 19
• Photometric efficiency: up to 139 lm/W (depending on configuration)
• Lumen maintenance: L80 / 75,000 h
• Control: DALI-2, non DIM
• Ingress protection: IP20

Colours (examples available)

• traffic white
• jet black
• white aluminium (anodised)

Reflector options (examples)

• chrome
• black

Light distribution options (examples)

• reflector spot round
• reflector medium round
• reflector flood round
• reflector wide flood round
• reflector medium square
• reflector flood square
• reflector wide flood square
• reflector medium rectangular / rectangular
• reflector wallwasher
• reflector wallwasher floor

Products and codes (excerpt)

• New — 090-1Q101BWB21: traffic white, Reflector black, medium round, 3000 K, 97 lm/W — non DIM
• New — 090-1Q101CWB21: traffic white, Reflector black, flood round, 3000 K, 104 lm/W — non DIM
• New — 090-1Q101DWB21: traffic white, Reflector black, wide flood round, 3000 K, 106 lm/W — non DIM
• New — 090-1Q101EWB21: traffic white, Reflector black, medium square, 3000 K, 95 lm/W — non DIM
• New — 090-1Q101FWB21: traffic white, Reflector black, flood square, 3000 K, 106 lm/W — non DIM

Technical specifications

• Construction: square surface-mounted luminaire, aluminium housing
• Mounting: luminaire housing attaches to mounting plate without tools via interlock
• Driver: converter integrated into luminaire housing
• Finish: surface powder coated (various colours available)
• Light source: energy-efficient high-power LEDs
• Colour rendering: CRI ≥ 90
• Colour consistency: 2 SDCM (initial MacAdam)
• Colour temperatures: 2700 K / 3000 K / 3500 K / 4000 K
• Photometric options: multiple symmetrical and asymmetric reflector distributions (spot, medium, flood, wide flood, square, rectangular, wallwasher, etc.)
• Efficiency: up to 139 lm/W (depending on configuration)
• Lumen maintenance: L80 / 75,000 h
• Glare control: selectable UGR classes ≤ 10, ≤ 16, ≤ 19
• Control: DALI-2 or non DIM options
• Degree of protection: IP20
• Reflector surface: micro-faceted, aluminium-vapourised reflector
