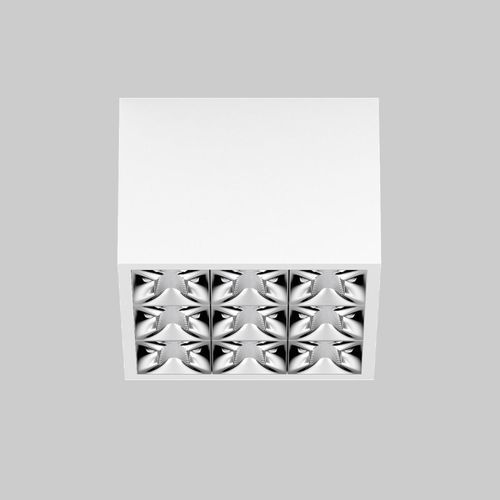

Surface mounted downlight UNICO Q9

ceiling-mountedLEDsquare

Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• UGR ≤ 10, UGR ≤ 16, UGR ≤ 19
• Up to 138 lm/W
• L80 / 75,000 h
• Controls: DALI-2, non DIM
• Protection class: IP20

Description
Square surface-mounted multi-downlight in aluminium with nine individually selectable or preconfigured light elements. The luminaire houses an integrated driver and connects to the mounting plate via a tool-free interlock. High-quality, micro-faceted aluminium-vapourised reflectors deliver precise radiation characteristics, available in symmetric and asymmetric distributions. Energy-efficient high-power LEDs ensure very good colour rendering.

Colour options

• traffic white
• jet black
• white aluminium (anodised aluminium)

Reflector options

• chrome
• black

Light distribution options

• reflector spot round (e.g. 19° spot)
• reflector medium round (e.g. 34° medium)
• reflector flood round (e.g. 47°)
• reflector wide flood round (e.g. 67°)
• reflector medium square (e.g. 32° medium square)
• reflector flood square (e.g. 55°)
• reflector wide flood square (e.g. 70°)
• reflector rectangular
• reflector wallwasher / wallwasher floor

Mounting & design
Square surface-mounted luminaire with aluminium housing and powder-coated finish. The luminaire attaches to the mounting plate without tools via interlock. Multiple reflector geometries are available to achieve precise symmetric or asymmetric light distribution for architectural interior lighting.

Technical specifications

• Material: aluminium housing
• Number of light elements: nine selectable / customisable light elements
• Integrated converter inside luminaire housing
• Surface finish: powder coated
• High-quality micro-faceted, aluminium-vapourised reflector
• LED type: high-power LEDs with very good colour rendering
• Colour temperature options: 2700 K / 3000 K / 3500 K / 4000 K
• Colour rendering: CRI ≥ 90
• MacAdam: 2 SDCM (initial)
• Unified Glare Rating (UGR) classes available: ≤ 10 / ≤ 16 / ≤ 19
• Luminous efficacy up to 138 lm/W (depending on configuration)
• Lumen maintenance: L80 at 75,000 h
• Control options: DALI-2 or non-dimmable (non DIM)
• Ingress protection: IP20
• Attachment: interlock mounting plate (tool-free)
