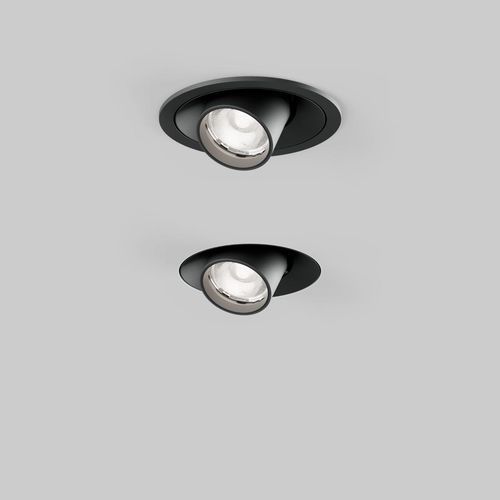

Semi-recessed downlight SASSO PRO 80

LEDroundindoor

Quickinfo

• 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90, 2 SDCM
• up to 1850 lm | 126 lm/W
• L90 @ 50 000 h
• non DIM, DALI-2

Colour

• traffic white
• jet black
• aluminium raw

Availability

• Available from Q1/27

Simple drawing

• Simple drawing available (semi-recessed / offset-recessed)

Light distribution

• spot
• medium
• flood
• wide flood

Description
Round recessed spotlight in die-cast aluminium designed for quick tool-free installation via a mounting set with ball catch system. Available in raw aluminium or powder-coated finishes. The luminaire can be installed in different housings; the light inset is rotatable and tiltable for flexible aiming. Optional recessed lighting level and optical attachments are available as accessories. An optional high-quality lens system and a precision reflector with spherical facet design provide accurate beam characteristics. COB (Chip on Board) LED technology ensures high efficacy, uniform light without multiple shadows, and very good colour rendering.

Features / Highlights

• Die-cast aluminium housing
• Tool-free installation and exchange via mounting set with ball catch system
• Surface finish: raw or powder coated
• Installation configurable in different housings
• Light inset rotatable and tiltable (360° rotation, 35° tilt)
• Optional recessed lighting level
• Optical attachments available as accessories
• Optional high-quality lens system for precise beam control
• High-quality reflector with spherical facet effect for defined beam angles
• COB technology for high efficiency and no multiple shadows
• Glare control: UGR ≤ 13
• Changeable optic options

caractéristiques / spécifications techniques

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90
• 2 SDCM
• Light output up to 1850 lm (depending on configuration)
• System efficacy examples: 126 lm/W (listed), up to 132 lm/W (high efficiency, depending on configuration)
• L90 @ 50,000 h
• Dimming options: non DIM, DALI-2
• Glare control: UGR ≤ 13
• Optics: optional high-quality lens system and changeable optics
• Mounting: tool-free mounting set with ball catch system
• Mechanical adjustment: 360° rotation, 35° tilt
• LED technology: COB (Chip on Board)
