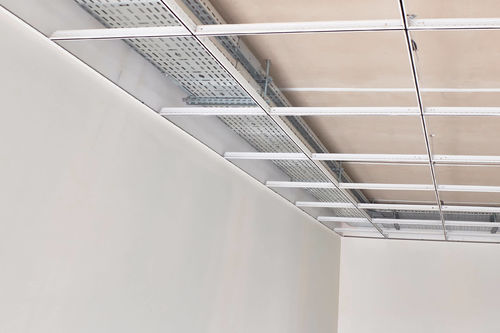

Metal ceiling suspension system

for kitchenfor officefor home cinemas

Overview
Supportive metal frame for gypsum and panel ceilings. Provides the structural carrier system for suspended ceilings, composed of main carriers, secondary carriers, perimeter profiles and suspension elements. Suitable for residential, commercial and industrial interior applications where a modular suspended ceiling is required.

FVP T24 Series Carrier System
FVP T24 carrier profile system includes a 3600 mm main carrier, 1200 mm and 600 mm secondary carriers (sub-carriers), perimeter profile and suspension assembly (suspension wire, steel dowel, suspension tong). The system accepts a wide range of ceiling panels including Karopan, Sound, Metal, Colorpan, Pan Hygienic, Rock Wool, PVC, Glass Wool and Wooden Panels.

• Components: 3600 mm main carrier; 1200 mm and 600/300 mm secondary carriers; perimeter profiles; suspension assembly (suspension wire, steel dowel, suspension tong).
• Compatibility: Karopan, Sound panels, Metal panels, Colorpan, Pan Hygienic, Rock Wool, PVC, Glass Wool, Wooden Panels.

Problem-free Assembly and Disassembly
The FVP T24 profiles integrate a special locking system that facilitates fast assembly and disassembly even in large spans. Sub-carriers are fully compatible with the main carrier for straightforward installation and maintenance.

TSE Standards
The suspended ceiling carrier system is designed in accordance with TSE / TS-EN-13964 requirements. Profiles have been subjected to bending tests with deflection performance below 0.2 mm (load-bearing deflection limit). The system holds TSE compliance certification.

FVP Clip-in Carrier System
The FVP Clip-in carrier system comprises the carrier profile, perimeter profile and suspension assembly (suspension tong, clip, insert, suspension wire, steel dowel and edge wedge). The concealed clip-in design conceals carrier profiles for improved aesthetics while allowing easy installation and removal where needed.

FVP 800 Series Carrier System
FVP 800 (ductile) carrier systems provide an alternative aesthetic profile with robust appearance, quick assembly/disassembly and suitability for projects requiring enhanced visual finish.

FVP T15 Ultra Line Carrier System
T-15 Ultra Line carrier profiles offer a slim aesthetic, robustness and fast installation. The T-15 system is compatible with hanging panels as well as FVP Metal Panels, Sound Panels, Wood panels and Rock Wool panels.

CKM 412 Anti-Seismic Series
The CKM 412 anti-seismic design uses specially developed intertwined joints to prevent grille collapse under external effects such as earthquakes. Tensile and compression strength can reach up to 80 KGf (approx. 180 lb) and meets ASTM E580. CKM 412 carriers are engineered for easier assembly and disassembly compared with ordinary anti-seismic carriers.

Shipment Details (table)
NAME OF THE PRODUCT | LENGTH | PACKAGE QUANTITY | WEIGHT | VOLUME
FVP MAIN CARRIER | 3600 mm | 25 piece = 90 mt | 27,12 kg / package | 0,32 m³ / package
FVP TALI CARRIER | 1200 mm | 50 piece = 60 mt | 15,42 kg / package | 0,20 m³ / package
FVP TALI CARRIER | 600 mm | 75 piece = 45 mt | 11,90 kg / package | 0,02 m³ / package
FVP TALI CARRIER | 300 mm | 75 piece = 22,5 mt | 5,95 kg / package | 0,008 m³ / package
FVP CLIP-IN CARRIER | 3000 mm | 24 piece = 72 mt | 24,99 kg / package | 0,44 m³ / package
FVP CLIP-IN C CORNER | 3000 mm | 24 piece = 72 mt | 19,55 kg / package | 0,45 m³ / package
FVP L CORNER PROFILE | 3000 mm | 50 piece = 150 mt | 21,06 kg / package | 0,19 m³ / package

FVP T15 ULTRA LINE CARRIER SHIPMENT DETAILS (table)
NAME OF THE PRODUCT | LENGTH | PACKAGE QUANTITY
FVP T15 ULTRA LINE MAIN CARRIER | 3600 mm | 25 piece = 90 mt
FVP T15 ULTRA LINE TALI CARRIER | 1200 mm | 50 piece = 60 mt
FVP T15 ULTRA LINE TALI CARRIER | 600 mm | 75 piece = 45 mt

Images & Gallery
Product images include multiple FVP carrier system photos (T-24, Clip-in, corner profiles) and gallery images showing installed FVP carrier systems and component details.

Technical Specifications

• T-24 Main Carrier: Length 3600 mm; Height 35 mm; Width 24 mm; Thickness 0.3 mm; Package quantity 25; Package weight ~27 kg.
• T24 Sub-Carrier: Lengths 1200 mm and 600 mm; Height 26 mm; Width 24 mm; Thickness 0.3 mm; Package qty 50 (1200 mm) / 75 (600 mm); Package weight ~17 kg (1200 mm) / ~12 kg (600 mm).
• Clip-in Carrier: Length 3000 mm; Height 25 mm; Width 32.5 mm; Thickness 0.4 mm.
• Corner C Profile: Length 3000 mm; Height 36 mm; Width 22 mm; Thickness 0.4 mm.
• Corner L Profile: Length 3000 mm; Height 19 mm; Width 19 mm; Thickness 0.4 mm; Package qty 50; Package weight ~25 kg.
• Corner Z Profile: Length 3000 mm; Height 24 mm; Width 24 mm; Thickness 0.4 mm; Package qty 40; Package weight ~25 kg.
• FVP Clip-in system components: carrier profile, perimeter profile, suspension tong, clip, insert, suspension wire, steel dowel, edge wedge.
• Anti-seismic (CKM 412): Special intertwined joints; Tensile strength up to 80 KGf (approx. 180 lb); Meets ASTM E580; easier assembly/disassembly than ordinary anti-seismic carriers.
• Standards: Complies with TS-EN-13964 / TSE requirements; deflection performance below 0.2 mm in bending tests.
