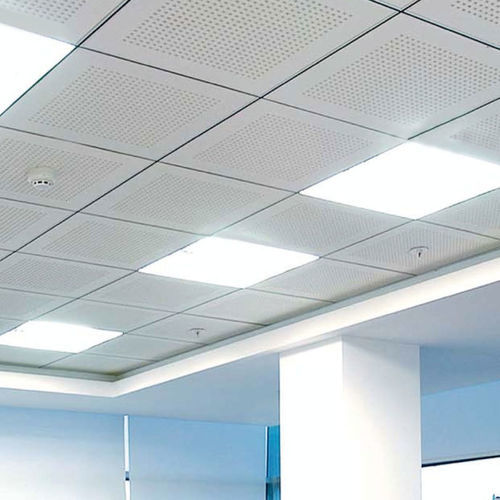

Wall sound-absorbing panel

for partition wallfor false ceilingplaster

Overview
Acoustic panels and boards add difference to your spaces by offering decorative, long-lasting and economical solutions. Acoustic Gypsum Board is a specialized building material designed to enhance sound insulation and control in indoor spaces. It is composed of a gypsum core with sound-absorbing properties engineered to reduce noise transmission, minimize echoes and reverberation, and improve acoustic comfort.

Key Features

• Provides acoustic performance
• Has aesthetic design feature
• Provides strong sound insulation
• Not affected by moisture
• Coup and abrasion resistant
• Easy assembly and disassembly
• Different perforation possibilities

What is Acoustical Ceiling Board?
Acoustic Gypsum Board is a gypsum-based panel designed to absorb and dampen sound vibrations, minimizing echoes and reverberation. It is suitable for walls, ceilings and partitions to create quieter indoor environments and is used in theaters, recording studios, offices, bedrooms and other spaces where improved acoustic comfort is required.

Is Acoustic Suspended Ceiling Worth It?
Yes. Acoustic Gypsum Board improves sound insulation by absorbing and dampening sound vibrations, reducing noise transmission and enhancing speech clarity and comfort, particularly in spaces such as theaters, studios, offices and bedrooms.

Where to Position Acoustic Panels?
Strategically position acoustic panels to optimize sound absorption and noise reduction: place panels symmetrically across the room for balanced sound distribution; identify and install at first reflection points to minimize early reflections; target corners and areas above sound sources; position over seating areas and workstations; and maintain proper spacing between panels for uniform absorption.

Models / Perforations

• Ø6 Perforated Row Arrangement
• Ø10 Perforated Row Arrangement
• Ø5-10 Perforated Row Sequence
• 12x12mm Square Perforated Row Sequence
• Ø6-12 Perforated Shattered Line

Delivery Details (package / pallet)
THICKNESS | PACKAGE QUANTITY | VOLUME | QUANTITY OF PALLET
7 mm | 12 piece = 4.32 m² | 0.33 m³ / package | 68 package = 293.76 m²
8 mm | 10 piece = 3.60 m² | 0.33 m³ / package | 68 package = 244.80 m²
9.5 mm | 8 piece = 2.88 m² | 0.33 m³ / package | 68 package = 195.84 m²
12.5 mm | 6 piece = 2.16 m² | 0.33 m³ / package | 68 package = 146.88 m²

Technical Details
Panel Type | Gypsum board
Surface | Unpainted and Vinyl Coated
Size (mm) | 600×600, 300×600, 600×1200, 1200×2400
Thickness | 7 mm, 8 mm, 9.5 mm, 12.5 mm
Plasterboard | White, Green, Red, Bordeaux
Perforation (mm) | Ø6 Row Sequence, Ø10 Row Sequence, Ø5-10 Row Sequence, Ø6-12 Row Sequence, 12 × 12 Row Sequence
Color | All colors in Karopan PVC chart
Acoustic Fabric | Imported Fiberglass
Edge Surface | Tapeless
Carrier system | T24, T-15
System | Seated
Sound Absorption Class | C
Fire Class | A2

Applications / Usage Areas

• Cafes and Restaurants
• Airports
• Schools
• Metro / Subway
• Health complexes and hospitals
• Conference halls
• Cinema and theater halls
• Banks
• Gyms
• Social facilities

Gallery & Installation Notes
Multiple applied installation examples and technical drawings are provided to illustrate perforation patterns, panel sizes and recommended carrier/hanger configurations. Typical carrier elements include T-24 main and subordinate carriers, double hanger spring, steel dowel and hanger wire. Panels can be supplied unpainted or vinyl coated and offer a range of perforation patterns for varying acoustic performance and aesthetic effects.

Characteristics / Technical specifications

• Panel Type: Gypsum board
• Surface finish: Unpainted or vinyl coated
• Available sizes (mm): 600×600, 300×600, 600×1200, 1200×2400
• Thickness options: 7 mm, 8 mm, 9.5 mm, 12.5 mm
• Plasterboard color options: White, Green, Red, Bordeaux
• Perforation patterns: Ø6, Ø10, Ø5-10, Ø6-12, 12×12
• Acoustic fabric: Imported fiberglass
• Edge surface: Tapeless
• Carrier system compatibility: T24, T-15
• System type: Seated suspended ceiling
• Sound absorption class: C
• Fire classification: A2
• Package quantities and pallet volumes: see Delivery Details table above
