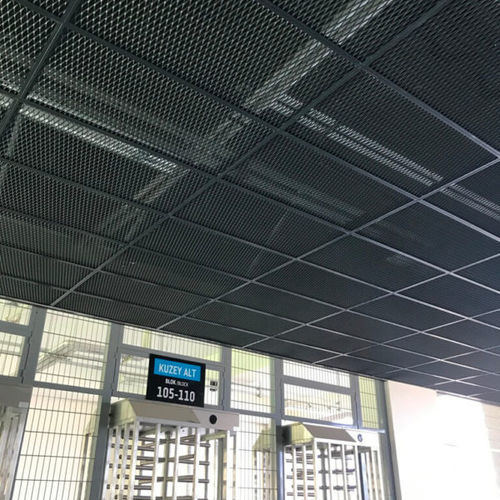

Stainless steel suspended ceiling

aluminumgalvanizedpanel

Overview
FVP Mesh Expanded Metal Ceiling Systems are aesthetic ceiling solutions that provide light and air permeability due to their expanded metal hollow texture. Panels are manufactured in aluminum, DKP (galvanized) and stainless steel and are available in Hook-On, Lay-In and Lay-On models with custom color finishes. The combination of visual transparency and mechanical robustness supports both architectural exterior/interior projects and specific industrial applications.

Models

• Hook–On: Hook-on panels delivering a seamless appearance and allowing light and air permeability thanks to the expanded metal structure.
• Lay-On (Seated): Seated lay-on panels designed for aesthetic interior and exterior solutions with identical material and finish options.
• Lay-In (With Droop): Lay-in (with droop) panels offering alternative installation methods while maintaining permeability and structural performance.

Features

• Multiple pattern options
• Various panel sizes
• Easy to clean
• Quick assembly and disassembly
• Moisture resistant
• Shock and abrasion resistant
• Long service life
• Several thickness options

Technical details (typical ranges)
Material | Thickness (mm) Min. – Max. | Width (mm)
Aluminum | 0.5 – 2.00 mm | 1500 mm
DKP (galvanized) | 0.5 – 2.00 mm | 1500 mm
Stainless | 0.5 – 2.00 mm | 1500 mm

Technical drawing / Main components (Hook-On example)
Key components for hook-on systems: L profile main hook-on, Z profile on hook, L and Z profile parts, hook-on main part, edge L, rod, steel dowels, nut and bolt.

Usage Areas

• Cafes and restaurants
• Gyms
• Hotels
• Factory buildings
• Airports
• Health complexes and hospitals
• Swimming pools
• Schools
• Malls and shopping centers
• Offices
• Social facilities
• Shopping and entertainment centers

Caractéristiques / Spécifications techniques

• Commercial name / series: FVP Mesh Expanded Metal Ceiling Systems
• Materials: Aluminum, DKP (galvanized), Stainless steel
• Thickness range: 0.5 – 2.00 mm
• Maximum panel width: 1500 mm
• Available models: Hook-On, Lay-On (Seated), Lay-In (With Droop)
• Color options: Unlimited / custom color finishes
• Key properties: light and air permeability, easy to clean, moisture resistant, shock and abrasion resistant, long life, fast assembly/disassembly
• Suitable applications: interior and exterior architectural solutions and industrial applications
