Galvanised steel suspended ceiling FVP series

aluminumpanelfor office

Product Overview
Metal suspended ceiling panels designed for suspended ceiling grid systems. Manufactured from aluminum or galvanized steel, FVP panels are available in multiple perforation patterns, thicknesses and finishes to meet architectural and functional requirements including acoustic and thermal performance.

What is a Metal Suspended Ceiling Panel?
A metal suspended ceiling panel is a flat, rigid element installed into a suspension grid to form the visible ceiling surface. FVP panels are produced in standard sizes and profiles (lay-in, lay-on, clip-in/clip-on) and are suitable for commercial, institutional and transport infrastructure projects where durability, fire performance and maintainability are required.

How to Install Metal Suspended Ceiling Panels
Prepare the existing ceiling and set out the suspension layout. Install main runners and cross tees to create a level T-24 grid or alternative carrier system. Fit FVP panels into the grid, trimming perimeter panels as needed and securing with clips or screws when required. Check alignment, fill gaps and adjust hangers to achieve an even, continuous ceiling plane.

METAL SUSPENDED CEILING PANEL FEATURES

• Acoustic performance with optional infill
• Architectural surface finishes and color options
• Sound insulation and perforation patterns
• Resistance to moisture and common building contaminants
• Impact and abrasion resistance suitable for public areas
• Multiple RAL color options and factory finishes
• Easy assembly, maintenance and replacement

METAL SUSPENDED CEILING PANEL MODELS

• FVP Clip-In (Hidden Carrier)
• FVP Clip-On (Hidden Carrier)
• FVP Lay-In (Suspended)
• FVP Lay-On (Seated)

Delivery Details
NAME OF THE PRODUCT — DIMENSIONS — PACKAGE QUANTITY — QUANTITY OF PALLET — VOLUME
FVP CLIP-IN — 60×60 cm — 24 piece = 8,64 m² — 24 package = 207,36 m² — 0,12 m³ / package
FVP CLIP-IN — 30×30 cm — 60 piece = 5,40 m² — 30 package = 162 m² — 0,08 m³ / package
FVP CLIP-IN — 30×60 cm — 30 piece = 5,4 m² — 30 package = 162 m² — 0,08 m³ / package
FVP CLIP-IN — 60×120 cm — 10 piece = 7,2 m² — 15 package = 108 m² — 0,24 m³ / package
FVP LAY-IN — 60×60 cm — 32 piece = 11,52 m² — 24 package = 276,48 m² — 0,12 m³ / package
FVP LAY-IN — 30×30 cm — 68 piece = 6,12 m² — 30 package = 183,60 m² — 0,08 m³ / package
FVP LAY-ON — 60×60 cm — 32 piece = 11,52 m² — 24 package = 276,48 m² — 0,12 m³ / package
FVP LAY-ON — 30×30 cm — 88 piece = 7,92 m² — 30 package = 237,60 m² — 0,08 m³ / package
FVP CLIP-ON — 60×60 cm — 24 piece = 8,64 m² — 24 package = 207,36 m² — 0,12 m³ / package
FVP CLIP-ON — 30×30 cm — 60 piece = 5,40 m² — 30 package = 162 m² — 0,08 m³ / package

Technical Details
SYSTEM — Lay-on, Lay-in, Clip-in
Size (mm) — 600×600, 300×300, 300×600, 600×1200
THICKNESS — 0,40 mm, 0,45 mm, 0,50 mm, 0,60 mm, 0,70 mm
RAW MATERIAL — Aluminum and Galvanized Steel
PERFORATION (mm) — 1,8 (staggered arrangement), 2,5 (row arrangement)
ACOUSTIC — Imported fiberglass and local fabric options
COLOR — Standard RAL 9016 or other colors from RAL catalog
CARRIER SYSTEM — T-24, white and channel carriers, clip-in carrier options

Technical Drawing Components

• FVP Suspended Ceiling Panel
• FVP T-24 Main Carrier 3.6 m
• FVP T-24 Main Carrier 1.2 m
• FVP T-24 Main Carrier 0.6 m
• FVP Z or L Corner Profile (or L Corner Profile for lay-on)
• FVP Hanger Tongs
• Steel dowel
• Hanger wire

Applications / Usage Areas

• Cafes and restaurants

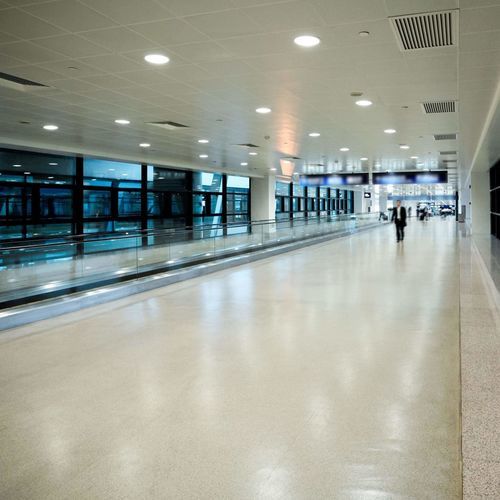

• Airports
• Schools and universities
• Metro and subway stations
• Health complexes and hospitals
• Conference halls
• Cinema and theater halls
• Banks and public buildings
• Malls, entrances and general commercial areas

Technical Specifications

• Available systems: Lay-on, Lay-in, Clip-in
• Standard panel sizes: 600×600 mm, 300×300 mm, 300×600 mm, 600×1200 mm
• Panel thickness options: 0.40 mm to 0.70 mm
• Materials: Aluminum and galvanized steel
• Perforation patterns: 1.8 mm staggered; 2.5 mm row pattern
• Acoustic infill options: imported fiberglass or local fabric
• Standard color: RAL 9016 (other RAL colors available)
• Carrier systems: T-24 main carriers, channel and clip-in carriers
• Packaging and pallet quantities vary by model and size (see Delivery Details above)
