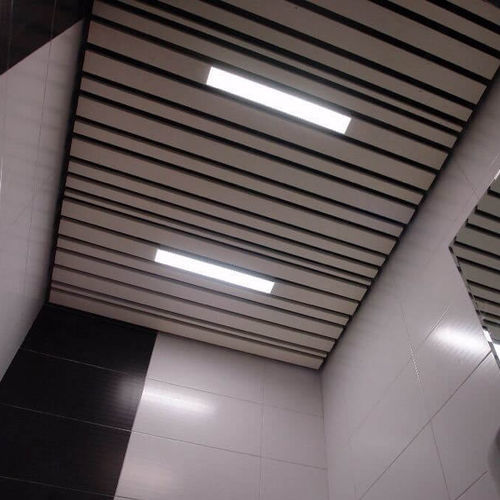

Galvanised steel suspended ceiling

aluminumpanelfor bathrooms

Overview
Linear suspended ceilings for interior and exterior applications. Modular panel system offered in four series (F, B, R, C) with aluminum or galvanized steel construction, multiple width options and production to customer-specified lengths.

Series and application descriptions

• F Series (Outdoor): Aluminum and galvanized steel panels for outdoor environments. Produced to requested lengths with six width indexes (100, 150, 200, 300, 400, 600 mm). Includes a locked support system with validated wind resistance.
• B Series (Indoor): Multi-panel grouping with four widths (30, 80, 130, 180 mm). Allows up to four different panels on a single support with a 20 mm joint strip between panels; panels with or without gaps and custom colors. Designed for easy removal to access the plenum.
• R Series (Indoor): Multi-panel grouping in widths of 35, 85, 135, 185 mm. Joint gaps reinforce the linear effect; joint lath available. Options include gaskets and acoustic or perforated variants. Produced to order and removable for maintenance.
• C Series (Internal): Closed, jointless panels for interiors in widths of 75, 150 and 300 mm. Manufactured to length by roll technique; panels are removable during and after installation.

Panel features

• Multiple pattern and size options
• Powder-coated finish for easy cleaning
• Quick assembly and disassembly
• Moisture resistant
• Shock and abrasion resistant
• Long service life

Areas of use

• Shopping and entertainment centers
• Healthcare complexes and hospitals
• Cafes and restaurants
• Gymnasiums
• Hotels
• Factory and industrial buildings
• Commercial kitchens
• Swimming pool areas
• Schools and educational facilities
• Bathrooms and restrooms
• Social facilities
• Offices

Technical details (per series)
F Series (Outdoor)
Material: Aluminum, Galvanized steel
Available width indexes: 100 / 150 / 200 / 300 / 400 / 600 mm (produced to length on demand)
Thickness: 0.40 – 1.20 mm
Length: Produced to customer-specified lengths
Color: Standard RAL 9016; other RAL options available
Perforation: O2, O3
Acoustics: Acoustic fabric, fiberglass
System weight: 2.13 – 9.74 kg/m2
Quality certificate: ISO 9001 / TS / CE

B Series (Indoor)
Material: Aluminum, Galvanized steel
Available widths: 30 / 80 / 130 / 180 mm (optional production)
Thickness: 0.40 – 1.20 mm
Length: Produced to customer-specified lengths
Color: Standard RAL 9016; other RAL options available
Perforation: O2, O3
Acoustics: Acoustic fabric, fiberglass
System weight: 2.08 – 7.61 kg/m2
Quality certificate: ISO 9001 / TSE

R Series (Indoor)
Material: Aluminum, Galvanized steel
Available widths: 35 / 85 / 135 / 185 mm (optional production)
Thickness: 0.40 – 1.20 mm
Length: Produced to customer-specified lengths
Color: Standard RAL 9016; other RAL options available
Perforation: O2, O3
Acoustics: Acoustic fabric, fiberglass
System weight: 2.07 – 7.39 kg/m2
Quality certificate: ISO 9001 / TSE

C Series (Internal)
Material: Aluminum, Galvanized steel
Available widths: 75 / 150 / 300 mm (optional production)
Thickness: 0.40 – 1.20 mm
Length: Produced to customer-specified lengths
Color: Standard RAL 9016; other RAL options available
Perforation: O2, O3
Acoustics: Acoustic fabric, fiberglass
System weight: 2.15 – 9.20 kg/m2
Quality certificate: ISO 9001 / TSE

Technical specifications

• Materials: Aluminum and galvanized steel
• Thickness range: 0.40 – 1.20 mm
• Available widths (series dependent): F: 100 / 150 / 200 / 300 / 400 / 600 mm; B: 30 / 80 / 130 / 180 mm; R: 35 / 85 / 135 / 185 mm; C: 75 / 150 / 300 mm
• Length: Produced to customer-specified lengths on demand
• Color: Standard RAL 9016; other RAL options available
• Perforation options: O2, O3
• Acoustic options: Acoustic fabric, fiberglass
• System weight ranges: approximately 2.07 – 9.74 kg/m2 depending on series and configuration
• Certifications: ISO 9001 and relevant national/CE certificates
