Gas bratt pan SGL-T5

for the food industryfor commercial kitchen

Overview
Coming Soon

Product Summary

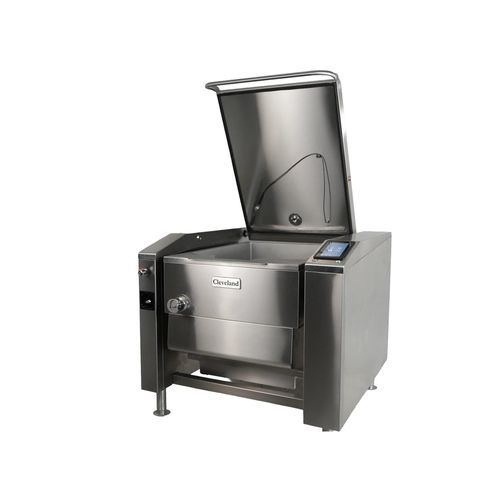

The SGL-T5 easyTouch is the launch model of Cleveland’s NovoPan Series: a gas tilt skillet engineered for professional kitchens requiring fast recovery, programmable repeatability and flexible operator layout. It combines a 7" easyTouch touchscreen, mirrored dual-console controls and improved combustion for up to 15% greater fuel efficiency. The T5 reaches 450°F (232°C) in approximately 5 minutes for faster service and consistent batch-to-batch results.

Key Features

• First-of-Its-Kind NovoPan Series — Launch model for the next-generation NovoPan platform, designed specifically for commercial braising and skillet applications.
• 15% Greater Fuel Efficiency — Redesigned burner and combustion system deliver up to 15% improved fuel efficiency versus the previous PowerPan generation.
• Rapid 450°F (232°C) Heat-Up in ~5 Minutes — Accelerated heat-up reduces wait time, improves throughput and provides faster recovery under load.
• Intuitive 7" easyTouch Touchscreen — Drip-proof side-console UI with full smart-cook capability, including:
  • Press & Go recipes with cookbook storage
  • Multi-step cooking with stage messaging
  • Lid-mounted product temperature probe with ±1°F control
  • Self-diagnostics and maintenance event logging
• Dual-Console Operator-Friendly Design — Mirrored controls on both sides support left- or right-handed operation and reduce operator travel during service peaks.
• Built-In Workflow Tools — Integrated operator tools for efficient service, including:
  • Standard 2" (50 mm) tangent draw-off valve for fast, clean emptying
  • Retractable swing faucet with hot/cold mixing for fill and washdown
  • Vented, spring-assisted cover with full-width handle
  • 10° tilt cooking without powering down
• Expanding NovoPan Accessory Ecosystem — Purpose-built accessories (scrooper, spaddle, steam pans) extend the T5 from braising into a multifunction cooking platform.

Accessories (listed)

• Draw-Off Valve — 2" (50 mm) Tangent Draw-Off Valve (TD2SK)
• Faucet — Double or Single Pantry Faucet (SPS14, DPS14), includes Faucet Mounting Bracket
• Faucet Bracket — (FBKT1)
• Pan Carrier — (PCS)
• Poaching Pans — (PP)
• Power Tilt — With Manual Override (PT2)
• Spray Head — Hot & Cold Water Pre-Rinse Spray Head with Hose (PRS-S)
• Vegetable Steamer Baskets — (VS)

Use Cases / Benefits
Designed for commercial kitchens requiring fast recovery, efficient fuel use, repeatable smart-cook recipes, flexible operator layout and integrated workflow tools. Suited to high-throughput braising, searing and skillet-style cooking in institutional, catering and foodservice operations.

Technical Specifications

• Model / Denomination: SGL-T5 easyTouch
• Series: NovoPan Series
• Control: 7" easyTouch touchscreen, drip-proof side-console, mirrored dual-console design
• Temperature Performance: Heats to 450°F (232°C) in ~5 minutes; ±1°F lid-mounted product probe
• Fuel Efficiency: Up to 15% greater fuel efficiency vs. previous PowerPan generation
• Tilt Function: 10° tilt cooking without powering down; standard 2" (50 mm) tangent draw-off valve
• Integrated Plumbing: Retractable swing faucet with hot/cold mixing; optional spray head (PRS-S)
• Cover: Vented, spring-assisted cover with full-width handle
• Workflow Tools: Cookbook storage, multi-step cooking/stage messaging, self-diagnostics and event logging
• Accessory Ecosystem: Scrooper, spaddle, steam pans, pan carrier, poaching pans, power tilt option with manual override
