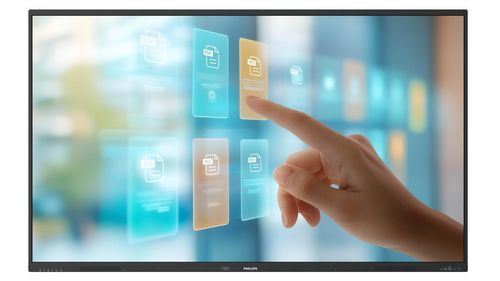

Interactive panel 86BDL4252E/00

Overview
This 86" interactive 4K display (model 86BDL4252E/00) running Android 14 is designed for collaborative environments. It supports 50 simultaneous touch points with 0-gap infrared touch and features toughened anti-glare, anti-fingerprint glass suitable for intensive daily use.

Key features

• 86" ADS panel, 3840 x 2160 (4K), 400 cd/m²
• 50 simultaneous touch points, 0-gap infrared technology
• Operating system: Android 14 with integrated 128GB eMMC and 8GB RAM
• Connectivity: HDMI 2.0, USB-C, DisplayPort, VGA, USB 3.0, OPS, Gb LAN x2, Bluetooth 5.2, NFC
• Built-in microphone and 2 x 20 W speakers
• Weight (without stand): 51.25 kg; Packaging: 70 kg
• 5-year warranty; certifications: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL

Display specifications

• Panel technology: ADS; Aspect ratio: 16:9
• Resolution / Optimum: 3840 x 2160 @ 60 Hz
• Brightness: 400 cd/m²; Contrast ratio (typical): 1200:1; Dynamic contrast: 500,000:1
• Viewing angles: 178° vertical / 178° horizontal; Pixel pitch: 0.4935 x 0.4935 mm
• Response time: 8 ms; Display colours: 1.07 billion

Interactivity

• Touch: 50 simultaneous touch points; multi-touch 0-gap infrared
• Protection glass: Tempered safety glass, anti-glare, anti-fingerprint, 9H pencil rating
• Built-in microphone; Plug & play: HID compliant

Connectivity

• Video input: HDMI 2.0, USB-C, DisplayPort, VGA
• Video output: HDMI 2.0
• Audio I/O: 3.5 mm mini jack in/out; SPDIF digital audio out
• Other: OPS slot, USB-B, USB 3.0, RS232C D-Sub9, Gb LAN x2, Bluetooth 5.2, NFC

Internal player & performance

• CPU: 4xA72 + 4xA53; GPU: Multi-Core Mali-G52
• Memory: 8GB RAM; Storage: 128GB eMMC
• Wi‑Fi: 2T/2R 2.4/5/6 GHz

Audio & power

• Speakers: 2 x 20 W; Built-in mic
• Power: 100–240 V~, 50–60 Hz; Typical consumption: 175 W; Standby <0.5 W
• Energy label class: F; Power saving: Smart Power

Dimensions & weight

• Set width: 1957 mm; Set height: 1170.8 mm; Depth: 97.1 mm
• Wall mount: 800 x 600 mm, M8; Bezel widths: 17.3 mm / 16.4 mm / 44.9 mm
• Product weight (no stand): 51.25 kg; Packaged weight: 70 kg

Operating conditions

• Storage temperature: -20 to 60 °C; Operating temperature: 0 to 40 °C
• Humidity (operation/storage): 10–90% RH; Altitude: 0–3000 m
• MTBF: 50,000 hours

Multimedia & supported formats

• Video formats: 480p/i, 720p, 1080i/p, 2160p up to 60 Hz
• USB playback video: H.263, H.264, H.265, MPEG1/2/4, VP8, VP9
• USB playback picture: BMP, JPEG, PNG, WEBP; Audio: AAC, HEAAC, MPEG

Accessories, warranty & certifications

• Included: Remote control & AAA batteries, USB A‑to‑B cable, AC power cord, quick start guide, touch pen
• Optional: Pen tray with 2x colour stylus
• Warranty: 5 years; Certifications: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL

Applications

• Collaboration and meeting rooms, education and training spaces, corporate signage and interactive presentations
