Interactive panel 55BDL3751T/00

Overview

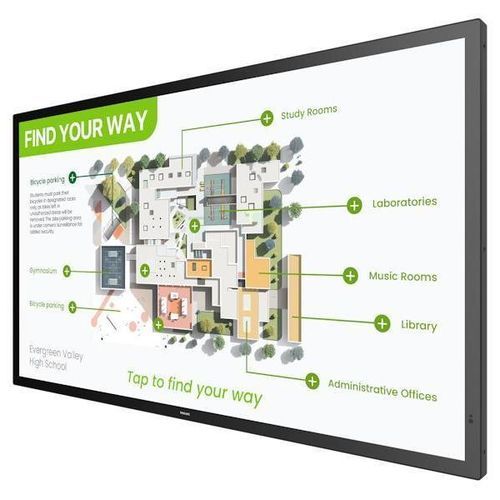

Reliable 55" PCAP interactive display designed for continuous commercial use. Integrates an Android 13 internal player, 4K VA panel and 20-point projected capacitive touch for collaborative environments. 450 cd/m² after glass and tempered safety front glass provide a balance between visibility and protection.

Size
55" (138.4 cm diagonal)

Key highlights

• Operation: 24/7
• Brightness (after glass): 450 cd/m²; Max before glass: 500 cd/m²
• Panel technology: VA, 3840 × 2160 (UHD)
• Operating system: Android 13 (internal player)
• Touch technology: Projected capacitive (PCAP), 20 simultaneous touch points
• Protection: 3 mm tempered safety glass
• On-board player: Quad-Core Cortex A55, Multi-Core Mali-G52, 4 GB DDR3, 32 GB eMMc
• Audio: 2 × 10 W built-in speakers
• Energy: Typical 100 W; Max 179 W; Standby <0.5 W; Energy label class G

Picture / Display details
Resolution: 3840 × 2160 @ 60 Hz (optimum); Display colours: 1.07 B; Aspect ratio: 16:9; Contrast ratio (typical): 5000:1; Viewing angle: 178°/178°; Response time: 8 ms; Surface: Anti-Glare & Anti-Fingerprint coatings; Pixel pitch: 0.315 mm

Operating conditions
Operating temp: 0–40 °C; Operating humidity: 20–80% RH; Storage temp: -20–60 °C; Storage humidity: 5–95% RH; MTBF: 50,000 hours; Altitude: 0–3000 m

Interactivity
Multi-touch: Projected capacitive, 20 simultaneous points; Plug and play: HID compliant; Touch protection: 3 mm tempered safety glass

Connectivity
Video inputs: HDMI 2.0, DisplayPort 1.3, USB-C; Audio out: 3.5 mm jack; External control: Gigabit LAN (RJ45), IR 3.5 mm, RS232 2.5 mm; Other: Micro USB, USB 3.0 A/B, Wi‑Fi (2T/2R 2.4/5/6 GHz), Bluetooth 5.2, OPS

Dimensions & Mechanical
Set (W×H×D): 1265.6 × 736.4 × 69.8–76.0 mm; Bezel width: 27.0 mm (touch black border); Wall mount: 400 × 400 mm, M6; Placement: Landscape, Portrait, Tilt up to 30° backwards

Miscellaneous
OS OSD languages include English, French, German, Italian, Japanese, Russian, Simplified Chinese, Spanish, Portuguese and others; Regulatory approvals include CE, FCC Class A, Energy Star 8.0; Warranty: 3 years

Supported Display / Video formats
Computer: up to 3840 × 2160 60 Hz; Common legacy modes from 640 × 480 to 1920 × 1080 supported
Video: up to 3840 × 2160 60/30 Hz; Standard 480i/p, 576i/p, 720p, 1080i/p formats supported

Accessories / Included
Included: Philips logo, Power cable, Quick start guide, Remote control with AAA batteries, AC switch cover, RS232 cable, USB A–B cable, CRD32 Wi‑Fi module and antennas
Optional: Open frame kit; Stand: BM05922

Technical specifications

• Model: 55BDL3751T/00
• Brand: Philips
• Panel resolution: 3840 × 2160 (UHD)
• Panel tech: VA
• Brightness (after glass): 450 cd/m²; Max before glass: 500 cd/m²
• Touch: Projected capacitive, 20 touch points
• OS: Android 13 (internal player)
• CPU/GPU/Memory/Storage: Quad-Core Cortex A55 / Mali-G52 / 4 GB DDR3 / 32 GB eMMc
• Power: 100–240 VAC 50/60 Hz; Typical 100 W; Max 179 W; Standby <0.5 W
• Dimensions (W×H×D): 1265.6 × 736.4 × 69.8–76.0 mm
• Weight: with packaging 32.18 kg; without packaging 24.96 kg
• Operating temp/humidity: 0–40 °C; 20–80% RH
• MTBF: 50,000 hours
• Warranty: 3 years
