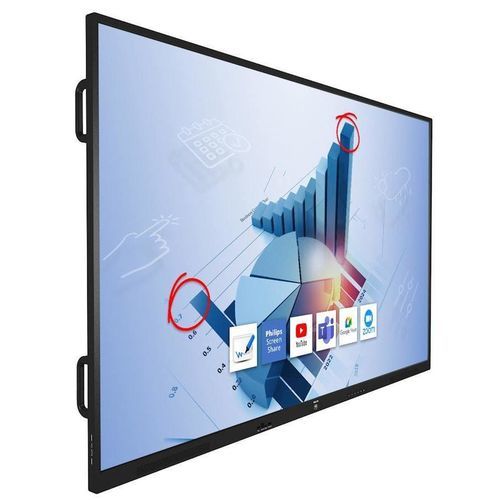

Interactive panel 86BDL4152E/00
Add to favorites
Compare this product
Description
Overview
This 86" interactive display (85.6" diagonal) runs Android 14 and supports up to 40 simultaneous touchpoints for collaborative environments. Toughened anti-glare, anti-reflection and anti-fingerprint tempered safety glass (7 MOHS) is designed for frequent daily use.
Series / Line
Collaboration 4000 Series (E-Line)
Size
86" (85.6" diagonal / 217.4 cm)
Display
4K UHD panel (3840 x 2160 @ 60 Hz) with ADS technology, 400 cd/m² brightness, typical contrast 1200:1 and dynamic contrast up to 500,000:1. OS UI resolution: 3840 x 2160; pixel pitch 0.4935 x 0.4935 mm; response time 8 ms; aspect ratio 16:9; 1.07 billion colours.
Interactivity
Tempered safety glass with anti-glare and blue light filter. 40 simultaneous touchpoints using 0-gap infrared multi-touch technology. Plug-and-play HID compliance.
Connectivity
Inputs: HDMI 2.0; USB 3.0; USB 2.0; USB-C. Output: HDMI 2.0. Audio in/out: 3.5 mm mini jack. External control: IR 3.5 mm jack; RS232C 2.5 mm jack; Gb LAN x2. Bluetooth 5.2 BLE. Additional: OPS slot; USB-B; Micro USB.
Internal player / Hardware
Built-in Android player with 8 GB RAM and 32 GB eMMC storage. CPU: quad A73 + quad A53; GPU: Multi-Core Mali-G52. Wi‑Fi: 2T/2R supporting 2.4/5/6 GHz.
Dimensions & Mounting
Set dimensions: 1965.1 x 1158.74 x 116.227 mm (W x H x D). Bezel widths: 16.7 mm and 39.42 mm. Wall mount: 800 x 400 mm, M8.
Power & Energy
Mains: 100–240 V~, 50–60 Hz, 7.5 A. Typical consumption: 190 W. Standby power consumption: <0.5 W. Energy label: G. EPEAT Silver. Power saving: Smart Power.
Sound
Built-in speakers: 2 x 20 W.
Operating / Storage Conditions
Operating temperature: 0–40 °C; humidity 20–80% RH. Storage: -20–60 °C; humidity 5–95% RH. Altitude: 0–3000 m. MTBF: 50,000 hours.
Multimedia / Supported Formats
USB picture: BMP, JPEG, PNG, WEBP. USB video: H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9. USB audio: AAC, HEAAC, MPEG.
Miscellaneous
Warranty: 5-year warranty. On-screen languages include English, French, German, Spanish, Italian, Japanese, Simplified and Traditional Chinese, Russian, Portuguese and others. Regulatory: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL. Included accessories: cleaning cloth; remote control with AAA batteries; USB A–B cable; AC power cord; quick start guide; AC switch cover and screw x1; touch pen. Optional: pen tray with 3 colour styluses and eraser.
Technical specifications
This 86" interactive display (85.6" diagonal) runs Android 14 and supports up to 40 simultaneous touchpoints for collaborative environments. Toughened anti-glare, anti-reflection and anti-fingerprint tempered safety glass (7 MOHS) is designed for frequent daily use.
Series / Line
Collaboration 4000 Series (E-Line)
Size
86" (85.6" diagonal / 217.4 cm)
Display
4K UHD panel (3840 x 2160 @ 60 Hz) with ADS technology, 400 cd/m² brightness, typical contrast 1200:1 and dynamic contrast up to 500,000:1. OS UI resolution: 3840 x 2160; pixel pitch 0.4935 x 0.4935 mm; response time 8 ms; aspect ratio 16:9; 1.07 billion colours.
Interactivity
Tempered safety glass with anti-glare and blue light filter. 40 simultaneous touchpoints using 0-gap infrared multi-touch technology. Plug-and-play HID compliance.
Connectivity
Inputs: HDMI 2.0; USB 3.0; USB 2.0; USB-C. Output: HDMI 2.0. Audio in/out: 3.5 mm mini jack. External control: IR 3.5 mm jack; RS232C 2.5 mm jack; Gb LAN x2. Bluetooth 5.2 BLE. Additional: OPS slot; USB-B; Micro USB.
Internal player / Hardware
Built-in Android player with 8 GB RAM and 32 GB eMMC storage. CPU: quad A73 + quad A53; GPU: Multi-Core Mali-G52. Wi‑Fi: 2T/2R supporting 2.4/5/6 GHz.
Dimensions & Mounting
Set dimensions: 1965.1 x 1158.74 x 116.227 mm (W x H x D). Bezel widths: 16.7 mm and 39.42 mm. Wall mount: 800 x 400 mm, M8.
Power & Energy
Mains: 100–240 V~, 50–60 Hz, 7.5 A. Typical consumption: 190 W. Standby power consumption: <0.5 W. Energy label: G. EPEAT Silver. Power saving: Smart Power.
Sound
Built-in speakers: 2 x 20 W.
Operating / Storage Conditions
Operating temperature: 0–40 °C; humidity 20–80% RH. Storage: -20–60 °C; humidity 5–95% RH. Altitude: 0–3000 m. MTBF: 50,000 hours.
Multimedia / Supported Formats
USB picture: BMP, JPEG, PNG, WEBP. USB video: H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9. USB audio: AAC, HEAAC, MPEG.
Miscellaneous
Warranty: 5-year warranty. On-screen languages include English, French, German, Spanish, Italian, Japanese, Simplified and Traditional Chinese, Russian, Portuguese and others. Regulatory: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL. Included accessories: cleaning cloth; remote control with AAA batteries; USB A–B cable; AC power cord; quick start guide; AC switch cover and screw x1; touch pen. Optional: pen tray with 3 colour styluses and eraser.
Technical specifications
- Model series: Collaboration 4000 Series (E-Line)
- Model size: 86" (85.6" diagonal)
- Panel resolution: 3840 x 2160 (UHD)
- OS: Android 14 (built-in player: 8 GB RAM, 32 GB eMMC)
- Touch: 40 simultaneous touchpoints, 0-gap Infrared
- Brightness: 400 cd/m²; Contrast (typical): 1200:1; Dynamic contrast: 500,000:1
- Viewing angles: 178° / 178° (V / H)
- Connectivity: HDMI 2.0 in/out; USB 2.0/3.0; USB-C; OPS; Gb LAN x2; Bluetooth 5.2 BLE; IR and RS232 control
- Audio: 2 x 20 W built-in speakers; 3.5 mm audio in/out
- Physical / Mount: 1965.1 x 1158.74 x 116.227 mm; Wall mount 800 x 400 mm (M8)
- Power: 100–240 V, 50–60 Hz; Typical consumption 190 W; Standby <0.5 W
- Operating environment: 0–40 °C; Humidity 20–80% RH; Storage -20–60 °C; Humidity 5–95% RH
- Safety / Compliance: CE; FCC Class A; RoHS; CB; EAC; EMF; ETL
