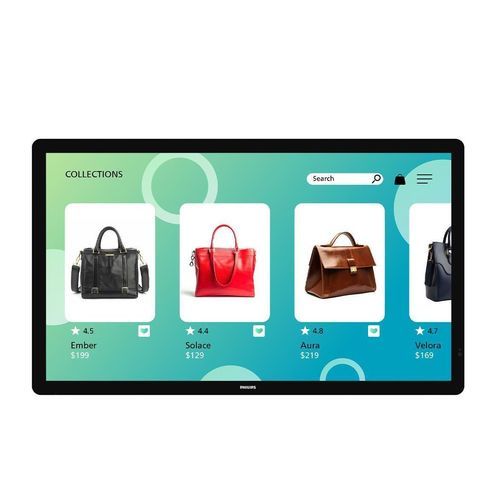

- 32” interactive PCAP touch display with integrated Android 13 player — no external media player required
- Designed for 24/7 operation; MTBF: 50,000 hours
- 350 cd/m² brightness after glass, IPS panel, Full HD 1920 × 1080
Series / Line
- 3000 Series / T-Line
Display
- Panel technology: IPS; Size: 32” (31.5" / 80 cm diagonal)
- Optimum resolution: 1920 × 1080 @ 60 Hz; Brightness: 400 cd/m² (before glass) / 350 cd/m² (after glass); Contrast ratio: 1200:1; Viewing angle: 178°/178°; Response time: 8 ms
- Surface treatments: Anti-Glare, Anti-Fingerprint; Protection glass: 2 mm tempered safety glass
Interactivity
- Multi-touch technology: Projected capacitive (PCAP); 10 simultaneous touch points; HID compliant (plug & play)
Connectivity
- Video inputs: HDMI 2.0, DisplayPort 1.3, USB-C
- USB: USB 3.0 A, USB 3.0 B, Micro USB
- Network & control: Gigabit LAN (RJ45), Wi‑Fi (2 T/2 R 2.4/5/6 GHz), Bluetooth 5.2, RS232, IR (3.5 mm)
- Audio: 3.5 mm output; Built-in speakers: 2 × 10 W
Performance & Internal player
- CPU: Quad-Core Cortex‑A55; GPU: Multi‑Core Mali‑G52; Memory: 4 GB DDR3; Storage: 32 GB eMMC
Power & Consumption
- Mains power: 100–240 VAC, 50/60 Hz; Consumption (Typical): 35 W; Consumption (Max): 87 W; Standby: <0.5 W
Placement, control & screen saving
- Placement: Landscape, Portrait, tilted installation up to 30° backwards
- Remote control: lockable; Keyboard control: hidden, lockable; Screen-saving: Pixel Shift, Low Brightness
Accessories & Mounting
- Included accessories: Philips logo, Power supply cable, Quick start guide, Remote control and AAA batteries, RS232 cable, USB A to B cable, Stand: BM05911
- Optional accessories: Open frame kit; Wall mount: VESA 100 × 100 / 200 × 200 (M4)
Environmental & Warranty
- Operating conditions: Altitude 0–3000 m; Operating temperature: 0–40 °C; Storage temperature: -20–60 °C; Humidity (operation): 20–80% RH; Humidity (storage): 5–95% RH; MTBF: 50,000 hours
- Regulatory approvals: CB, CE, FCC Class A, RoHS, BSMI, CU, ETL, IMDA, PSB, Energy Star 8.0
- Warranty: 3 year warranty
Dimensions & Weight
- Set (W × H × D): 749.1 × 443.6 × 69.5 / 73.5 mm; Bezel width: 24.4 mm (touch black border); Product weight without packaging: 8.31 kg; Product with packaging: 10.75 kg
