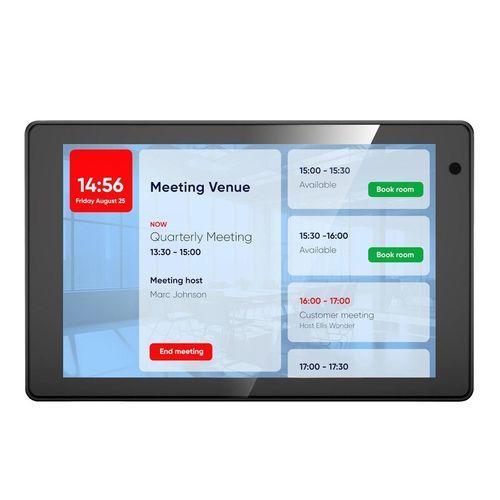

Interactive panel 10BDL3351T/00

Overview
Suitable for applications such as room booking panels, wayfinding and shelf advertising, this ultra-clear 10.1-inch multi-touch smart display integrates an Android 13 SoC and supports Power over Ethernet (PoE+) for flexible placement.

Size
10.1 inch (25.6 cm)

Connectivity
Audio output: 3.5 mm jack
Video output: HDMI
External control: RJ45
Other connections:

• microSD
• USB 2.0
• USB-C

Convenience
Picture performance: Advanced colour control
Energy-saving functions: Smart Power
Screen-saving functions: Low brightness
Programmable side LED: No
Other convenience:

• G sensor
• Kensington lock

Placement:

• Landscape
• Portrait

Keyboard control:

• Hidden
• Lockable

Network controllable:

• Wi‑Fi
• BT 5.0
• Ethernet

Accessories
Included accessories:

• AC power adapter
• Quick start guide

Internal Player
Storage: 8 GB eMMC
CPU: RK3568
Wi‑Fi: 802.11ac/a/b/g/n, 2.4/5 GHz
Memory: 2 GB DDR4

Dimensions
Set height: 164 mm
Set width: 262 mm (10.32 inch)
Set depth: 24.75 mm (0.97 inch)
Wall mount: 75 x 75 mm (VESA)
Bezel width (L/R, T/B): 22, 14 mm
Product weight: 0.8 kg (1.63 lb)

Power
Consumption (Max): 13 W
Mains power: DC12V ±5%, 2A, IEEE 802.3at PoE+
Standby power consumption: <0.5 W
Consumption (Typical): 4 W

Operating conditions
Humidity range (storage): 10–85% RH
Temperature range (storage): -10 to 60 °C
Altitude: 0 to 3000 m
Humidity range (operation): 30–80% RH
Temperature range (operation): 0 to 40 °C
MTBF: 50,000 hours

Picture / Display
Brightness: 350 cd/m²
Diagonal screen size: 10.1 inch (25.6 cm)
Panel resolution: 1280 x 800 (16:10)
Optimum resolution: 1280 x 800
Response time (typical): 35 ms
Operating system: Android 13
Viewing angle (vertical/horizontal): 160° / 160°
Contrast ratio (typical): 1000:1
Display colours: 16.7 million

Miscellaneous
On-screen display languages:

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Spanish
• Turkish
• Russian
• Simplified Chinese
• Traditional Chinese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals:

• CB
• CE
• RoHS
• FCC, Class A
• ETL

Warranty: 3 years

Interactivity
Protection glass: 0.7 mm tempered safety glass (7 MOHS)
Multi-touch technology: Projected capacitive
Touchpoints: 10 simultaneous touch points

Technical specifications

• Model family: Interactive 3000 Series T-Line
• Product code: 10BDL3351T/00
• Operating system: Android 13
• CPU: RK3568
• Memory / Storage: 2 GB DDR4 / 8 GB eMMC
• Display: 10.1 inch, 1280 x 800 (16:10), 350 cd/m²
• Touch: Projected capacitive, 10 touch points
• Connectivity: Wi‑Fi (802.11ac), BT 5.0, Ethernet, HDMI, USB-C, USB 2.0, microSD
• Power: DC12V or IEEE 802.3at PoE+, max 13 W, typical 4 W, standby <0.5 W
• Dimensions / Weight: 262 x 164 x 24.75 mm, 0.8 kg
• Mounting: 75 x 75 mm VESA
• Warranty: 3 years
