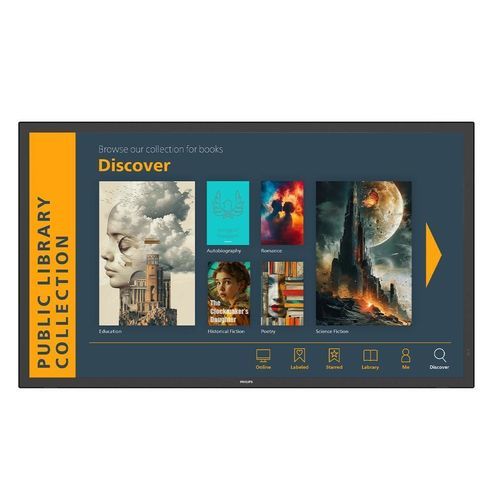

Interactive panel 43BDL3751T/00
Add to favorites
Compare this product
Description
Overview
Continuous 24/7 interactive 43" display (42.5" diagonal) with built-in Android 13 and Wave support, eliminating the need for an external media player. ADS panel with anti-glare and anti-fingerprint coatings and 3 mm tempered safety glass offers UHD 3840 x 2160 native resolution.
Series
Interactive 3000 Series (T-Line)
Size
43" (42.5" diagonal / 108.0 cm)
Key features
Certifications & warranty
Selected approvals: CE, CB, BSMI, FCC Class A, CU, ETL, IMDA, PSB, RoHS, Energy Star 8.0. Warranty: 3 years. On-screen display languages include Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese and others.
Operating conditions
Storage temperature: -20 ~ 60 °C. Operating temperature: 0 ~ 40 °C. Storage humidity: 5–95% RH. Operating humidity: 20–80% RH. MTBF: 50,000 hours. Altitude: 0 ~ 3000 m.
Weight
Product without packaging: 17.05 kg. Product with packaging: 20.63 kg.
Picture / Display
Brightness: max before glass 500 cd/m²; after glass 450 cd/m². Panel resolution: 3840 x 2160 (UHD) @ 60 Hz. Contrast ratio: 1200:1. Pixel pitch: 0.245 mm. Display colours: 1.07B. Aspect ratio: 16:9. Response time: 8 ms. Panel technology: ADS. Surface: Anti-Glare, Anti-Fingerprint.
Supported display resolution
Computer formats include 720 x 400 (70 Hz) to 3840 x 2160 (30/50/60 Hz). Video formats include 480i/480p, 576i/576p, 720p, 1080i/p, and 3840 x 2160 (30/60 Hz).
Interactivity
Plug and play: HID compliant. Multi-touch technology: Projected capacitive. Touchpoints: 20 simultaneous touch points. Protection: 3 mm tempered safety glass.
Connectivity (selected)
External control: Gigabit LAN (RJ45), IR 3.5 mm jack, RS232 2.5 mm jack. Video input: HDMI 2.0, DisplayPort 1.3, USB-C. Other: Micro USB, USB 3.0 A/B, Wi‑Fi (2T/2R 2.4/5/6 GHz), Bluetooth 5.2, OPS. Audio out: 3.5 mm jack.
Convenience
Network controllable via RS232 and RJ45. Screen-saving: Pixel Shift, Low Brightness. Placement: Landscape, Portrait, Tilted installation up to 30° backward. Signal loop through: IR loop, RS232. Keyboard and remote controls lockable.
Accessories
Included: Philips logo, power supply cable, quick start guide, remote control and AAA batteries, AC switch cover, RS232 cable, USB A to B cable, Wi‑Fi antennas, CRD32 Wi‑Fi module. Optional: Open frame kit. Stand: BM05922.
Internal player
CPU: Quad-Core Cortex A55. GPU: Multi-Core Mali-G52. Memory: 4 GB DDR3. Storage: 32 GB eMMc.
Dimensions
Set width: 990.0 mm. Set height: 578.2 mm. Set depth: 69.3 mm / 103.9 mm. Bezel width: 23.4 mm touch black border. Wall mount: VESA 200 x 200 mm, M6.
Sound
Built-in speakers: 2 x 10 W. Audio output: 3.5 mm jack.
Power
Mains power: 100 ~ 240 VAC, 50/60 Hz. Consumption (Typical): 65 W. Consumption (Max): 145 W. Standby <0.5 W. Energy Label Class: G.
Technical specifications (selected)
Continuous 24/7 interactive 43" display (42.5" diagonal) with built-in Android 13 and Wave support, eliminating the need for an external media player. ADS panel with anti-glare and anti-fingerprint coatings and 3 mm tempered safety glass offers UHD 3840 x 2160 native resolution.
Series
Interactive 3000 Series (T-Line)
Size
43" (42.5" diagonal / 108.0 cm)
Key features
- 24/7 operation
- PCAP (Projected Capacitive) multi-touch — 20 simultaneous touch points
- Built-in Android 13 OS (no external media player required)
- Wave ready
- 3 mm tempered safety glass
- ADS panel technology with anti-glare and anti-fingerprint coatings
- UHD 3840 x 2160 @ 60 Hz optimum resolution
- Wide viewing angles: 178° horizontal / 178° vertical
- Built-in speakers: 2 x 10 W
- Multiple connectivity: HDMI 2.0, DisplayPort 1.3, USB-C, USB 3.0 A/B, Micro USB, Gigabit LAN (RJ45), Wi‑Fi (2.4/5/6 GHz), Bluetooth 5.2, OPS
- Energy: Energy Label Class G; typical 65 W; max 145 W; standby <0.5 W
Certifications & warranty
Selected approvals: CE, CB, BSMI, FCC Class A, CU, ETL, IMDA, PSB, RoHS, Energy Star 8.0. Warranty: 3 years. On-screen display languages include Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese and others.
Operating conditions
Storage temperature: -20 ~ 60 °C. Operating temperature: 0 ~ 40 °C. Storage humidity: 5–95% RH. Operating humidity: 20–80% RH. MTBF: 50,000 hours. Altitude: 0 ~ 3000 m.
Weight
Product without packaging: 17.05 kg. Product with packaging: 20.63 kg.
Picture / Display
Brightness: max before glass 500 cd/m²; after glass 450 cd/m². Panel resolution: 3840 x 2160 (UHD) @ 60 Hz. Contrast ratio: 1200:1. Pixel pitch: 0.245 mm. Display colours: 1.07B. Aspect ratio: 16:9. Response time: 8 ms. Panel technology: ADS. Surface: Anti-Glare, Anti-Fingerprint.
Supported display resolution
Computer formats include 720 x 400 (70 Hz) to 3840 x 2160 (30/50/60 Hz). Video formats include 480i/480p, 576i/576p, 720p, 1080i/p, and 3840 x 2160 (30/60 Hz).
Interactivity
Plug and play: HID compliant. Multi-touch technology: Projected capacitive. Touchpoints: 20 simultaneous touch points. Protection: 3 mm tempered safety glass.
Connectivity (selected)
External control: Gigabit LAN (RJ45), IR 3.5 mm jack, RS232 2.5 mm jack. Video input: HDMI 2.0, DisplayPort 1.3, USB-C. Other: Micro USB, USB 3.0 A/B, Wi‑Fi (2T/2R 2.4/5/6 GHz), Bluetooth 5.2, OPS. Audio out: 3.5 mm jack.
Convenience
Network controllable via RS232 and RJ45. Screen-saving: Pixel Shift, Low Brightness. Placement: Landscape, Portrait, Tilted installation up to 30° backward. Signal loop through: IR loop, RS232. Keyboard and remote controls lockable.
Accessories
Included: Philips logo, power supply cable, quick start guide, remote control and AAA batteries, AC switch cover, RS232 cable, USB A to B cable, Wi‑Fi antennas, CRD32 Wi‑Fi module. Optional: Open frame kit. Stand: BM05922.
Internal player
CPU: Quad-Core Cortex A55. GPU: Multi-Core Mali-G52. Memory: 4 GB DDR3. Storage: 32 GB eMMc.
Dimensions
Set width: 990.0 mm. Set height: 578.2 mm. Set depth: 69.3 mm / 103.9 mm. Bezel width: 23.4 mm touch black border. Wall mount: VESA 200 x 200 mm, M6.
Sound
Built-in speakers: 2 x 10 W. Audio output: 3.5 mm jack.
Power
Mains power: 100 ~ 240 VAC, 50/60 Hz. Consumption (Typical): 65 W. Consumption (Max): 145 W. Standby <0.5 W. Energy Label Class: G.
Technical specifications (selected)
- Model: 43BDL3751T
- Series: Interactive 3000 Series (T-Line)
- Screen size: 43" (42.5" diagonal / 108.0 cm)
- Panel resolution: 3840 x 2160 (UHD)
- Panel technology: ADS
- Brightness (after glass): 450 cd/m²; before glass: 500 cd/m²
- Contrast ratio: 1200:1
- Viewing angle: 178° / 178°
- Touch technology: Projected capacitive, 20 touch points
- Protection glass: 3 mm tempered safety glass
- OS: Android 13
- CPU / GPU / Memory / Storage: Quad-Core Cortex A55 / Mali-G52 / 4 GB DDR3 / 32 GB eMMc
- Connectivity: HDMI 2.0, DP 1.3, USB-C, USB 3.0 A/B, Micro USB, RJ45, Wi‑Fi (2.4/5/6 GHz), Bluetooth 5.2, OPS
- Audio: 2 x 10 W built-in speakers; audio out 3.5 mm jack
- Power: 100–240 VAC 50/60 Hz; Typical 65 W; Max 145 W; Standby <0.5 W
- Environmental: Storage -20~60 °C; Operation 0~40 °C; Operation humidity 20–80% RH
- Mounting: VESA 200 x 200 mm (M6)
- Warranty: 3 years
- Regulatory: CE, CB, BSMI, FCC Class A, CU, ETL, IMDA, PSB, RoHS, Energy Star 8.0
