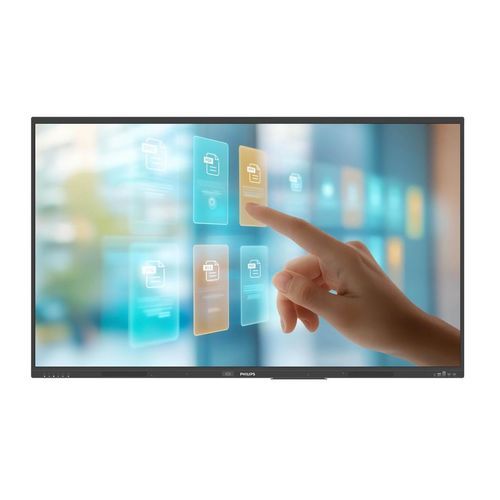

Interactive panel 75BDL4252E/00

Product overview
This 75" interactive touch display runs Android 14 and supports up to 50 simultaneous touchpoints for collaborative environments. The panel uses ADS technology and a tempered anti-glare, anti-fingerprint front glass with blue light filter, suitable for heavy daily use in meeting rooms, classrooms and control centres.

Size
75" (190.5 cm diagonal)

Operating conditions
MTBF: 50,000 hours
Storage humidity: 10–90% RH
Storage temperature: -20 to 60 °C
Operating humidity: 10–90% RH
Operating temperature: 0 to 40 °C
Altitude: 0 to 3000 m

Miscellaneous
On-screen languages include Arabic, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Simplified and Traditional Chinese and others. Warranty: 5 years. Approvals: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL.

Weight
Product without stand: 39.5 kg (87.1 lb). Product with packaging: 55 kg (121.25 lb).

Picture/Display
Diagonal: 75" (190.5 cm). Aspect ratio: 16:9. Panel resolution: 3840 x 2160 (4K). Panel tech: ADS. Brightness: 400 cd/m². Typical contrast: 1200:1. Dynamic contrast ratio: 500,000:1. Viewing angle: 178° horizontal / 178° vertical. Display colours: 1.07 billion. Response time: 8 ms. Pixel pitch: 0.4296 x 0.4296 mm. Optimum and OS UI resolution: 3840 x 2160 @ 60 Hz.

Supported Display Resolution
Computer formats include common PC timings from 800 x 600 up to 3840 x 2160 (24/25/30/60Hz). Video formats supported include 480i/p, 720p, 1080i/p and 2160p up to 60Hz.

Interactivity
Plug-and-play HID compliant. 50 simultaneous touch points. Multi-touch technology: 0-gap infrared. Built-in microphone included. Protection glass: tempered, anti-glare, anti-fingerprint, blue light filter.

Connectivity
Video inputs: HDMI 2.0, USB-C, DisplayPort, VGA. Video output: HDMI 2.0. Audio I/O: 3.5 mm mini-jack in/out, SPDIF digital out. Other: USB 3.0, USB-B, OPS slot, Gb LAN x2, Bluetooth 5.2 (BLE), NFC.

Convenience
Network controllable via RS232 and RJ45. Lockable keyboard and remote control functions. Screen-saving: Pixel Shift, Low Brightness. Placement: landscape. Carrying handles included.

Accessories
Included: AC power cord, quick start guide, remote control with AAA batteries, USB A to B cable, touch pen. Optional: pen tray with 2 color styluses.

Internal Player
SoC: CPU 4xA72 + 4xA53. GPU: Multi-core Mali-G52. Memory: 8 GB RAM. Storage: 128 GB eMMc. Wi-Fi: 2T/2R 2.4/5/6 GHz.

Dimensions
Set width: 1709.4 mm (67.30 inch). Set height: 1031 mm (41.30 inch). Set depth: 97.3 mm (3.83 inch). Bezel widths: 17.3 mm, 16.4 mm, 44.9 mm. Wall mount: VESA 800 x 400 mm, M8.

Sound
Built-in speakers: 2 x 20 W.

Power
Mains: 100–240 VAC, 50/60 Hz. Typical consumption: 130 W. Standby: <0.5 W. Energy label class: F. Power saving: Smart Power.

Multimedia Applications
USB playback audio: AAC, HEAAC, MPEG. Picture: BMP, JPEG, PNG, WEBP. Video: H.263, H.264, H.265, MPEG1/2/4, VP8, VP9.

Technical specifications

• Model / Part: 75BDL4252E/00
• Display: 75" ADS panel, 3840 x 2160, 400 cd/m²
• Touch: 50 simultaneous touch points, 0-gap infrared
• OS & SoC: Android 14, CPU 4xA72+4xA53, GPU Mali-G52, 8GB RAM, 128GB eMMc
• Audio: 2 x 20 W speakers, 3.5 mm I/O, SPDIF out
• Connectivity: HDMI 2.0, USB-C, DisplayPort, VGA, USB 3.0, USB-B, OPS, Gb LAN x2, Bluetooth 5.2, NFC
• Mechanical: VESA 800 x 400 mm, set depth 97.3 mm, weight 39.5 kg (no stand)
• Power: 100-240 VAC, typical consumption 130 W, standby <0.5 W
• Environment: Operating temp 0–40 °C, storage -20–60 °C, humidity 10–90%
• Protection & features: Tempered anti-glare / anti-fingerprint glass, blue light filter, Pixel Shift
• Warranty & approvals: 5 year warranty; CE, FCC Class A, RoHS, CB, EAC, EMF, ETL
