Interactive panel 10BDL5051T/00

Overview

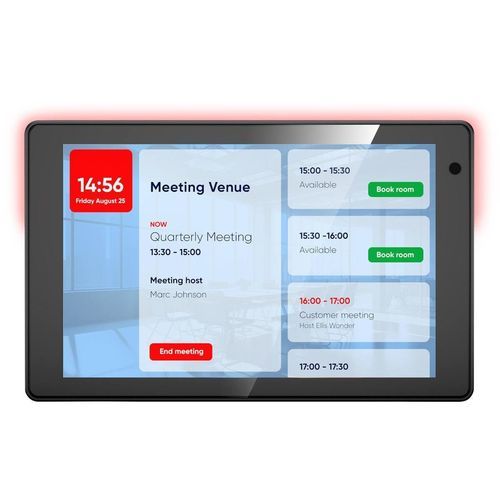

Compact 10.1" interactive multi-touch display designed for space-constrained commercial installations such as room booking, wayfinding and shelf advertising. Android 13 SoC and PoE+ support flexible deployment and network control.

Size
Diagonal: 10.1" (25.6 cm); Bezel widths: L/R 22 mm, T/B 14 mm

Connectivity

• External control: RJ45
• Video output: HDMI
• Ports: microSD, USB 2.0, USB-C
• Audio: 3.5 mm jack

Convenience

• Network: Wi‑Fi (802.11ac/a/b/g/n 2.4/5 GHz), Bluetooth 5.0, Ethernet
• Security & sensors: NFC, G-sensor, Kensington lock
• Programmable side LED on 3 sides
• Keyboard control: hidden and lockable
• Orientation: landscape and portrait
• Screen-saving: low brightness mode

Accessories
Included: AC power adapter, Quick start guide, USB A to C cable, HDMI cable

Internal player

• OS: Android 13
• CPU: RK3568
• Storage: 16 GB eMMC
• Memory: 2 GB DDR4
• Wi‑Fi: 802.11 ac/a/b/g/n (2.4/5 GHz)

Dimensions & mounting

• Width: 262 mm
• Height: 164 mm
• Depth: 24.75 mm
• Weight: 0.8 kg
• VESA: 75 x 75 mm

Sound
Built-in speakers: 2 x 1.5 W

Power

• Power options: DC12V +/-5% 2A or IEEE 802.3at PoE+
• Typical consumption: 4 W
• Max consumption: 18 W
• Standby: <0.5 W

Operating conditions

• Operating temperature: 0 ~ 40 °C
• Storage temperature: -10 ~ 60 °C
• Operating humidity: 30-80% RH
• Storage humidity: 10-85% RH
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hours

Picture / Display

• Panel resolution: 1280 x 800 (optimum)
• Aspect ratio: 16:10
• Brightness: 350 cd/m²
• Contrast ratio: 1000:1
• Viewing angles: 160° horizontal / 160° vertical
• Display colours: 16.7 million
• Response time: 35 ms

Interactivity

• Touch technology: Projected capacitive
• Touchpoints: 10 simultaneous touch points
• Protection glass: 0.7 mm tempered safety glass (7 MOHS)

Technical specifications

• Brand: Philips
• Series: Interactive 5000 Series (T-Line 10")
• Model: 10BDL5051T/00
• CPU: RK3568
• Storage/Memory: 16 GB eMMC / 2 GB DDR4
• Connections: RJ45, HDMI, microSD, USB 2.0, USB-C, 3.5 mm jack
• Network: Wi‑Fi, Bluetooth 5.0, Ethernet
• Power: DC12V/2A or PoE+; Typical 4 W, Max 18 W
• Speakers: 2 x 1.5 W
• Dimensions (W×H×D): 262 × 164 × 24.75 mm; Weight: 0.8 kg
• Mounting: 75 x 75 mm VESA
• Included accessories: AC adapter, Quick start guide, USB A–C cable, HDMI cable
• Warranty: 3 years
• Certifications: CE, FCC (Class A), RoHS, CB, ETL
