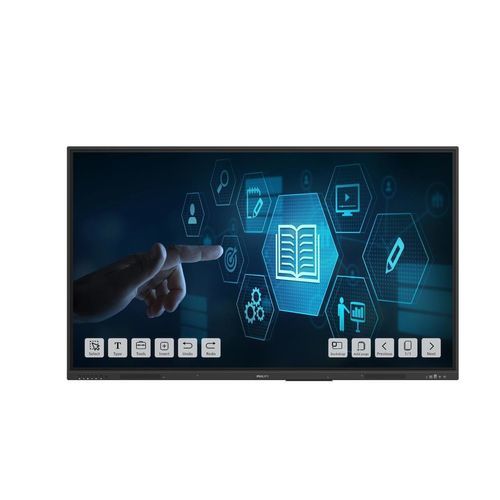

Interactive panel 65BDL3152E/00

Product overview
This interactive touch display is designed for collaborative environments, meetings and education. It supports up to 50 simultaneous touchpoints, runs Android 13 and features tempered anti-glare/anti-reflection safety glass (7 MOHS) for frequent daily use.

Series / Line
3000 Series / E-Line

Available sizes

• 86"
• 75"
• 65"

Key specifications

• Model: 65BDL3152E/00
• Screen size: 65" (163.9 cm)
• Resolution: 3840 x 2160 (Optimum 3840 x 2160 @ 60 Hz)
• Panel: VA, Brightness 400 cd/m², Viewing angles 178°
• Touch: 0-gap Infrared, 50 simultaneous touch points
• OS / Internal player: Android 13; Quad-Core Cortex A55; Mali-G52 GPU; 4 GB RAM; 32 GB eMMc
• Connectivity: HDMI 2.0, USB-C, USB 2.0/3.0, VGA, OPS, USB-B, RJ45 x2, RS232C
• Audio: 2 x 16 W speakers; audio I/O 3.5 mm, SPDIF
• Power: 100–240 VAC, Typical 140 W; Standby <0.5 W
• Warranty: 5 years

Display

• Panel resolution: 3840 x 2160
• Aspect ratio: 16:9
• Viewing angle (H/V): 178° / 178°
• Brightness: 400 cd/m²
• Pixel pitch: 0.372 x 0.372 mm
• Response time: 6.5 ms; Contrast ratio: 5000:1; Colours: 1.07 B

Interactivity

• Multi-touch technology: 0-gap Infrared
• Touchpoints: 50 simultaneous touches
• Plug and play: HID compliant
• Protection glass: Tempered safety glass, Anti-Glare, Anti-Reflection (7 MOHS)

Connectivity

• Video input: HDMI 2.0, USB-C, VGA
• USB: USB 2.0, USB 3.0, USB-B
• Network & control: RJ45 x2, RS232C D-Sub9
• Other: OPS, SPDIF, 3.5 mm audio in/out, Bluetooth 5.2

Internal player

• CPU: Quad-Core Cortex A55
• GPU: Multi-Core Mali-G52
• Memory / Storage: 4 GB RAM, 32 GB eMMc
• Wi‑Fi: 2.4 / 5 GHz; OS: Android 13

Operating conditions

• MTBF: 50,000 hours
• Storage temperature: -20 ~ 60 °C; Operation temperature: 0 ~ 40 °C
• Humidity (storage/operation): 10–90% RH
• Altitude: 0 ~ 5000 m

Power & energy

• Power supply: 100 ~ 240 VAC, 50/60 Hz
• Typical consumption: 140 W; Standby: <0.5 W
• Energy label class: F; Power saving: Smart Power

Dimensions & weight

• Dimensions (W×H×D): 1488.4 × 896.6 × 86.2 mm (58.6" × 35.28" × 3.40")
• Bezel width (L/R, T/B): 16.6 mm / 45.0 mm
• Wall mount: 600 x 400 mm, M8
• Weight (without stand): 35.45 kg; Packaged: 47 kg

Accessories

• Power cord, HDMI cable, USB-A to B, Remote control + AAA batteries
• 2 × stylus, Quick start guide, Wall mount

Certifications & warranty

• Certifications: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL, Energy Star 8.0
• Warranty: 5-year warranty
