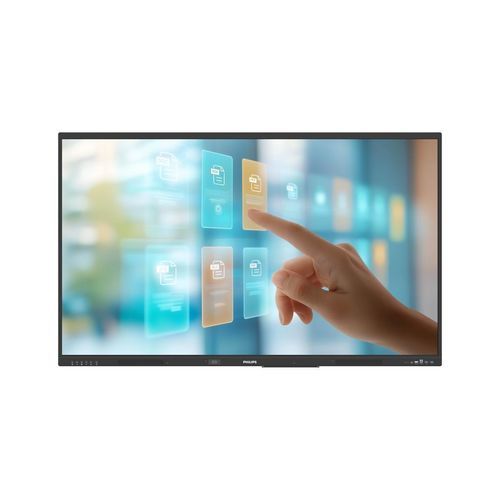

Interactive panel 65BDL4252E/00

Overview
This 65" interactive display 65BDL4252E/00 is a 4K collaborative panel running Android 14. It supports up to 50 simultaneous touch points and features toughened anti-glare, anti-fingerprint glass suited to intensive daily use in meeting rooms, classrooms and corporate collaboration spaces.

Key features

• 65" (165 cm) 4K UHD (3840 x 2160) ADS panel, 16:9
• 50 simultaneous touch points (0-gap Infrared)
• Android 14 OS, 8 GB RAM, 128 GB eMMC storage
• Brightness 400 cd/m²; contrast ratio 1200:1; dynamic contrast up to 500,000:1
• Built-in microphone and 2 x 20 W speakers

Display & image
Native 3840 x 2160 resolution at 60 Hz with wide 178° viewing angles and 8 ms typical response time. Picture enhancement features include motion deinterlacing, 3D combfilter and dynamic contrast to deliver clear content and smooth video playback.

Interactivity
0-gap Infrared touch with HID plug-and-play support and 50-point multi-touch for simultaneous inputs. Protective tempered glass with anti-glare and 9H pencil rating reduces reflections and fingerprints. Touch pen included for precise input.

Connectivity

• Video inputs: HDMI 2.0, USB-C (x2), DisplayPort, VGA
• Video output: HDMI 2.0
• Audio: 3.5 mm in/out, SPDIF digital out
• Control & network: RS232C, Gb LAN x2, Bluetooth 5.2 BLE, Wi‑Fi 6 (2T/2R)
• Other: OPS slot, USB-B, USB 3.0

Performance & OS
Integrated multi-core CPU (4xA72 + 4xA53) and Mali-G52 GPU deliver responsive on-board performance for collaboration apps and Android-based signage. 8 GB RAM and 128 GB storage support multitasking and local media playback.

Sound & power

• Speakers: 2 x 20 W
• Typical power consumption: 99 W; standby <0.5 W
• Mains: 100–240 VAC, 50–60 Hz

Dimensions & installation
Set dimensions: 1488 mm (W) x 97.3 mm (D) x 907.5 mm (H). Product weight without stand: 28.44 kg. VESA wall mount: 600 x 400 mm (M8). Bezel widths: 17.3 / 16.4 / 44.9 mm depending on model variation.

Certifications & warranty

• Regulatory: CE, FCC Class A, RoHS, CB, EAC, EMF, ETL
• Warranty: 5 years

Included accessories

• Quick start guide
• USB A to B cable
• AC power cord
• Remote control & AAA batteries
• Touch pen

Supported formats
Video playback and computer input support common formats up to 3840 x 2160 @ 60 Hz. USB playback: H.263/H.264/H.265, MPEG, VP8/VP9; image: BMP, JPEG, PNG, WEBP; audio: AAC, HEAAC, MPEG.
