Interactive panel 86BDL4052E/02

Overview

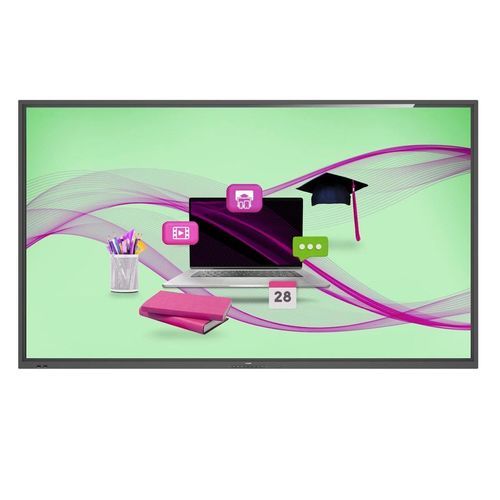

This is an Android-powered Philips E-Line interactive touch display designed for collaboration and educational use. Model 86BDL4052E/02 offers a 86 inch 4K UHD VA panel, 20 simultaneous touch points and anti-glare tempered safety glass.

Key specifications

• Model: 86BDL4052E/02
• Brand: Philips
• Screen: 86 inch (217.4 cm) 3840 x 2160 (4K UHD), 16:9
• Panel: VA; Brightness after glass: 400 cd/m²; Contrast ratio (typical): 4000:1
• Touch: 0-gap Infrared, 20 simultaneous touch points
• Operating system (internal player): Android 11; CPU: MTK 9970A; Memory/Storage: 8 GB / 32 GB eMMC

Interactivity

• Multi-touch technology: 0-gap Infrared
• Touchpoints: 20 simultaneous touch points
• Plug and play: HID compliant
• Protection glass: Anti-glare; Blue light filter; Tempered safety glass (Mohs 7)

Connectivity

• Video inputs: HDMI 2.0, DVI-D, USB-A, USB-B, USB-C
• Video output: HDMI 2.0
• Audio I/O: 3.5 mm mini-jack input/output; built-in speakers 2 x 15 W
• Other: OPS slot, microSD, RJ45, RS232, IR input

Internal player

• CPU: MTK 9970A
• Memory: 8 GB RAM
• Storage: 32 GB eMMC
• Wi-Fi: 2G/5G/6G 2T2R

Dimensions & weight

• Set width x height x depth: 1960.8 x 1145.7 x 101.3/79.0 mm
• Diagonal: 86 inch (85.6 inch panel)
• Product weight (without stand): 74.49 kg

Power & sound

• Typical power consumption: 450 W; Max: 670 W; Standby <0.5 W
• Mains: 100 - 240 V~, 50 - 60 Hz
• Speakers: 2 x 15 W

Included accessories

• Cleaning cloth
• HDMI cable
• Remote control + AAA batteries
• USB A to B cable
• AC power cord and AC switch cover
• Cable clip, DVI-I cable, IR sensor cable
• Philips logo, quick start guide, RS232 cables, touch pen, USB cover and screws

Certifications & warranty

• Regulatory approvals: CE; FCC Class A; RoHS; CB; EAC; EMF; ETL
• Warranty: 5-year warranty
