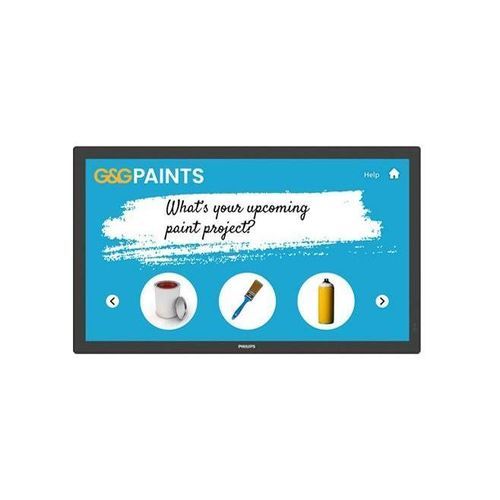

Interactive panel 24BDL3751T/00

Product overview
This 24 in interactive PCAP touch display 24BDL3751T/00 offers continuous 24/7 operation with 250 cd/m² (after glass) brightness and a built-in Android 13 player. Designed for signage and interactive applications where multi-touch capability and network connectivity are required.

Series / Line
Interactive 3000 Series (T-Line)

Available sizes

• 24 in (this product)
• 32 in
• 43 in
• 55 in

Picture / Display
Panel: ADS, optimum resolution 1920 x 1080 @ 60 Hz, 16.7 M colours, aspect ratio 16:9, contrast 1000:1. Surface: anti-glare and anti-fingerprint coatings. Brightness: 250 cd/m² (after glass), 275 cd/m² (before glass). Response time: 8 ms. Viewing angles: 178°/178°.

Interactivity
Projected capacitive multi-touch with 10 simultaneous touch points. 1.8 mm tempered safety glass. HID-compliant plug & play.

Connectivity
Video inputs: HDMI 2.0, DisplayPort 1.3, USB-C. External control: Gigabit LAN (RJ45), IR 3.5 mm, RS232 2.5 mm. Other: Micro USB, USB 3.0 A/B, Wi‑Fi 2T/2R (2.4/5/6 GHz), Bluetooth 5.2. Audio output: 3.5 mm jack.

Internal player
CPU: Quad-Core Cortex A55. Memory: 4 GB DDR3. Storage: 32 GB eMMc. GPU: Multi-Core Mali-G52. Android 13 OS UI (FHD).

Dimensions & Weight
Set width x height x depth: 570.8 mm x 340.3 mm x 38.4 mm. Bezel width: 21.1 mm (touch black border). Wall mount: 200 x 200 mm, M4. Weight: 4.78 kg (without packaging), 6.7 kg (with packaging).

Operating conditions
Operating temperature: 0–40 °C. Storage temperature: -20–60 °C. Humidity (operation): 20–80% RH. Altitude: 0–3000 m. MTBF: 50,000 hours.

Convenience
Screen-saving: Pixel Shift, Low Brightness. Placement: landscape, portrait, tilt up to 30° backwards. Signal loop-through: IR, RS232. Keyboard/remote control: hidden & lockable. Network controllable via RS232 and RJ45.

Sound
Built-in speakers: 2 x 10 W.

Power
Typical consumption: 25 W. Max consumption: 83 W. Standby: <0.5 W. Mains: 100–240 VAC, 50/60 Hz. Energy label class: G.

Multimedia applications (USB playback)
Video formats: MPEG1/2/4, H.263, H.264, H.265, VP8, VP9. Picture: JPEG, PNG, BMP, WEBP. Audio: AAC, HEAAC, MP3 and other MPEG layers.

Accessories
Included: Philips logo, power supply cable, AC adapter, quick start guide, remote control with AAA batteries, RS232 cable, USB A–B cable, wall mount bolts x2. Optional: open frame kit. Stand: BM05911.

Technical specifications

• Model: 24BDL3751T/00
• Series: Interactive 3000 Series (T-Line)
• Panel resolution: 1920 x 1080 @ 60 Hz
• Brightness (after glass): 250 cd/m²
• Touch technology: Projected capacitive, 10 touch points
• OS: Android 13 (Quad-Core Cortex A55, 4 GB DDR3, 32 GB eMMc)
• Video inputs: HDMI 2.0, DisplayPort 1.3, USB-C
• Network: Gigabit LAN, Wi‑Fi (2.4/5/6 GHz), Bluetooth 5.2
• Power: Typical 25 W — Max 83 W — Standby <0.5 W
• Dimensions (W x H x D): 570.8 mm x 340.3 mm x 38.4 mm
• Weight (without packaging): 4.78 kg
• Operating conditions: 0–40 °C; 20–80% RH; altitude 0–3000 m
• Regulatory approvals: CB, CE, FCC Class A, RoHS, BSMI, CU, ETL, IMDA, PSB
• Warranty: 3 year warranty
