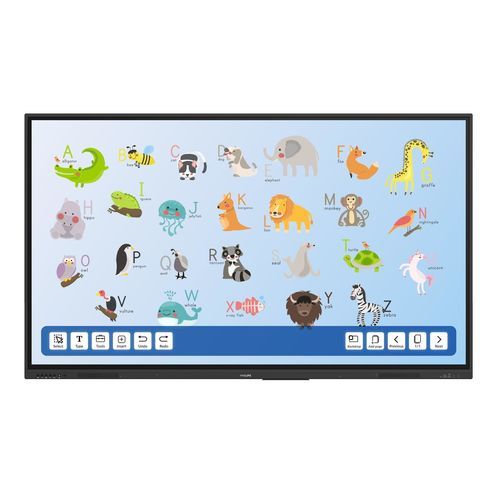

Interactive panel 86BDL3152E/00

Description
86" interactive flat panel display with 4K VA panel, Android 13 internal player, and multi-touch capability. Offers up to 40 touchpoints (marketing) and 50 simultaneous touch points (technical), tempered anti-glare glass (7 MOHS) and 400 cd/m² brightness for meeting rooms and collaborative spaces.

General
Size: 86"
Series: Collaboration 3000 Series (E-Line)

Operating conditions
Storage temperature: -20 ~ 60 °C
Operating temperature: 0 ~ 40 °C
Altitude: 0 ~ 5000 m
MTBF: 30,000 hour
Storage humidity [RH]: 10–90%
Operating humidity [RH]: 10–90%

Picture / Display
Diagonal screen size (metric): 218.44 cm
Diagonal screen size (inch): 86 inch
Brightness: 400 cd/m²
Panel technology: VA
Panel resolution: 3840 x 2160 (4K)
Pixel pitch: 0.4935 x 0.4935 mm
Viewing angle (V/H): 178° / 178°
Contrast ratio (typical): 5000:1
Response time (typical): 8 ms
Optimum resolution: 3840 x 2160 @ 60 Hz
Display colours: 1.07 B
Aspect ratio: 16:9
OS UI resolution: 1920 x 1080 @ 60 Hz
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compensation deinterlacing; Progressive scan; 3D MA deinterlacing; Dynamic contrast enhancement

Supported display resolution
Video formats: 480i 60 Hz; 480p 60 Hz; 720p 50/60 Hz; 1080i 50/60 Hz; 1080p 50/60 Hz; 2160p 30/60 Hz

Interactivity
Protection glass: Anti-Glare; Tempered safety glass 7 MOHS
Touchpoints: marketing: up to 40 touchpoints; technical: 50 simultaneous touch points
Multi-touch technology: 0-gap Infrared touch
Plug and play: HID compliant

Connectivity
Video input: HDMI 2.0; VGA; USB-C; USB 2.0; USB 3.0
Other connections: OPS; USB-B
Audio input: 3.5 mm mini jack
Audio output: 3.5 mm Mini Jack; SPDIF
External control: RS232C D-Sub9; RJ45 x 2
Bluetooth: BT5.2

Convenience
Other convenience: Carrying handles
Remote control signal: Lockable
Placement: Landscape
Screen-saving functions: Pixel Shift; Low Brightness
Keyboard control: Lockable
Network controllable: RS232; RJ45

Accessories
Accessories included: Power cord; HDMI cable; USB-A to B; Remote control and AAA batteries; 2 pcs stylus; Quick start guide; Wall mount

Internal player
Storage: 32 GB eMMC
Wi-Fi: 2.4 / 5 GHz
CPU: Quad-Core Cortex A55
Memory: 4 GB RAM
GPU: Multi-Core Mali-G52

Dimensions
Set Width: 1957 mm (77.05 inch)
Set Height: 1159.9 mm (45.67 inch)
Set Depth: 95.5 mm (3.94 inch)
Wall Mount: 800 x 600 mm, M8
Bezel width (L/R, T/B): 16.6 mm / 45.0 mm

Weight
Product without stand: 59.2 kg (130.51 lb)
Product with packaging: 75 kg (165.35 lb)

Sound
Built-in speakers: 2 x 16 W

Power
Mains power: 100 ~ 240 VAC, 50/60 Hz
Standby power consumption: < 0.5 W
Power saving features: Smart Power
Consumption (Typical): 180 W
Energy Label Class: D

Miscellaneous
On-Screen Display Languages:

• Arabic
• Dutch
• Danish
• English
• French
• Finnish
• German
• Italian
• Japanese
• Norwegian
• Polish
• Portuguese
• Russian
• Spanish
• Swedish
• Simplified Chinese
• Turkish
• Traditional Chinese

Warranty: 5-year warranty
Regulatory approvals: CE; FCC Class A; RoHS; CB; EAC; EMF; ETL; Energy Star 8.0

Multimedia applications
USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: H.263; H.264; H.265; MPEG1/2; MPEG4; VP8
USB Playback Audio: AAC; MPEG; HEAAC

Technical specifications

• Model / Series: Collaboration 3000 Series (E-Line)
• Diagonal size: 86" (218.44 cm)
• Panel / Resolution: VA / 3840 x 2160 (4K)
• Brightness: 400 cd/m²
• Operating system (internal): Android 13
• Internal player: Quad-Core Cortex A55, 4 GB RAM, 32 GB eMMC
• Touch: 0-gap Infrared multi-touch; up to 40 touchpoints (marketing) / 50 simultaneous touch points (tech spec)
• Connectivity: HDMI 2.0, VGA, USB-C, USB 2.0/3.0, OPS, USB-B, RJ45 x2, RS232C
• Audio: 2 x 16 W built-in speakers; 3.5 mm in/out; SPDIF
• Power consumption: Typical 180 W; standby <0.5 W; 100-240 VAC
• Weight (without stand): 59.2 kg
• Warranty: 5 years
