Safety glass panel COOL-LITE® SKN 145

solar controlinsulatingacoustic

Summary
Double glazing with COOL-LITE® SKN 145 provides very high solar protection (solar factor g = 0.22) while maintaining moderate visible light transmission (TL = 41%). Solar-control glass with high selectivity and good thermal insulation. Typical composition used for calculations: 6-16-4 with coating on face 2.

Selection / environmental and performance arguments

• Energy savings
  • Reduced electricity for lighting and air conditioning: selectivity > 1.86
  • Reduced heating losses (Ug = 1.1 W/m²·K)
• Thermal comfort: limits the risk of summer overheating and avoids the sensation of a cold surface in winter (suitable for conservatory roofs).
• Visual comfort: good natural light for the given level of solar protection and good access to outside views.

Applications

• Rooflights or glazed roofs

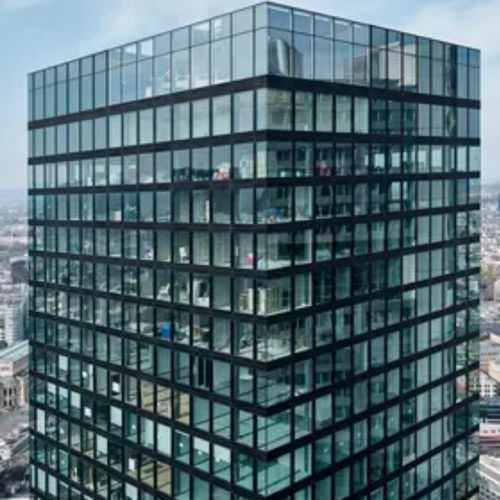

• Large glazed façades oriented south or west in hot sunny climates, or façades without additional exterior solar protection (e.g. high-rise building façades)

Advantages

• Slightly shimmering bluish appearance, color stable and homogeneous at different viewing angles
• Very high solar protection (g = 0.22), reducing cooling needs
• High thermal insulation (Ug = 1.1 W/m²·K) to limit heat loss
• Enables large glazed spaces while preserving visual and thermal comfort

Performance (excerpts)
Product | TL (%) | RL ext (%) | RL int (%) | Solar factor (g) | Selectivity | U (W/m²·K)
SKN 145 | 41 | 19 | 15 | 0.22 | 1.86 | 1.1

Range and availability

• Available as monolithic glass in thicknesses 6 or 8 mm (other thicknesses on request)
• Standard dimensions 6000 x 3210 mm (other lengths available on request)
• Also available as laminated safety glass (from 44.2 to 88.2) and in STADIP® PROTECT or STADIP® SILENCE versions for enhanced acoustic insulation

Usage instructions

• Must always be assembled in an insulating glazing unit with the coating placed on face 2
• Edge deletion of the coating is mandatory

Characteristics / technical specifications

• Visible light transmission (TL): 41 %
• External light reflection (RL ext): 19 %
• Internal light reflection (RL int): 15 %
• Solar factor (g): 0.22
• Selectivity: 1.86
• Thermal transmittance Ug (double glazing, argon 90 %): 1.1 W/m²·K
• Typical composition indicated: 6-16-4 with coating on face 2 (values given according to EN 673 and EN 410)
• Product from the 'les engagés' range (enhanced environmental and health performance)
• Appearance: slightly shimmering bluish, color stable at different angles
• Typical applications: façades, roofs, rooflights, high-rise buildings
